RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain

Certification
China ACASOM CO., LIMITED certification
I'm Online Chat Now

RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain

RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain
RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain

Large Image :  RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain

Product Details:
Place of Origin: Shenzhen
Brand Name: ACASOM
Model Number: ACA-Aten2450S1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $28.00/sets
Delivery Time: 3-5 worker days
Payment Terms: T/T, Western Union
Supply Ability: 3000

RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain

Description
Features: High Power Application: Drone Signal Blocking Parts
Type: Jamming Gun Parts Series: Super Drone Signal Blocker
Mounting Type: Self-installing Description: High Power Signal Blocking Device
Manufacturing Date Code: 202301XX Product Name: 2.4GHz Drone Signal Blocker
Frequency: 2400GHz-2500GHz Gain: 13 DBi
VSWR: <1.5:1 Polarization: Horizontal Or Vertical
Horizontal Beamwidth: 26° Vertical Beamwidth:: 23°
Nominal Impedance:: 50 Ohms F/B Ratio: >20dB
Lightning Protection: DC Ground
Highlight:

50 Ohm Drone Jammer Antenna

,

13 DBi Drone Jammer Antenna

,

counter drone antenna 50 Ohm

50 Ohm 13 dBi High Gain RFSMA Male Yagi Antenna for Drone Blocking

Product overview

RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain 0

RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain 11.Descriptions

 50 Ohm 13 dBi High Gain RFSMA Male Yagi Antenna for Drone Blocking

This 50 ohm 13 dBi high gain RFSMA male Yagi antenna is designed for drone jamming and blocking. Its unique Yagi structure provides strong directivity and gain, ensuring effective signal enhancement in a specific direction, making it suitable for anti-drone systems, surveillance and security applications.

2.Product Specifications

No. Items Specifications
1 Frequency range 2400-2500MHz
2 Gain 13 dBi
3 VSWR <1.5:1
4 Polarization Horizontal or Vertical
5 Horizontal Beamwidth 26°
6 Vertical Beamwidth 23°
7 Nominal Impedance 50 Ohms
8 F/B Ratio: >20dB
9 Max Input Power: 50 W
10 Lightning Protection DC Ground

3.Product Advantages

  • High Gain (13 dBi) Provides 13 dBi gain, which can significantly improve the signal strength in a specific direction and ensure clear signals during long-distance transmission.
  • Yagi antenna design Yagi structure provides superior directivity, which can concentrate the signal in the target direction, effectively reduce interference and improve signal quality.
  • 50 ohm impedance uses standard 50 ohm impedance, suitable for most wireless communication devices, ensuring good compatibility and connection effects.

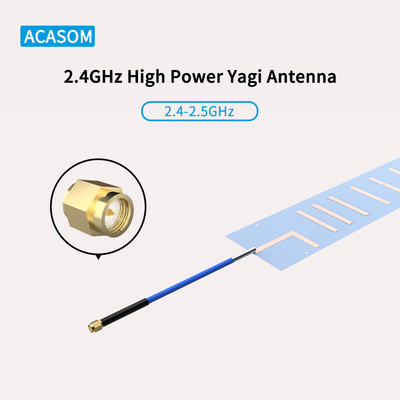

  • RFSMA male connector Equipped with RFSMA male connector, it is easy to connect to a variety of devices, easy to install, and suitable for different applications.
  • Widely used in anti-drone systems and suitable for various anti-drone applications, such as airports, military bases and public events, to improve the effectiveness and reliability of security protection.

4.Product details

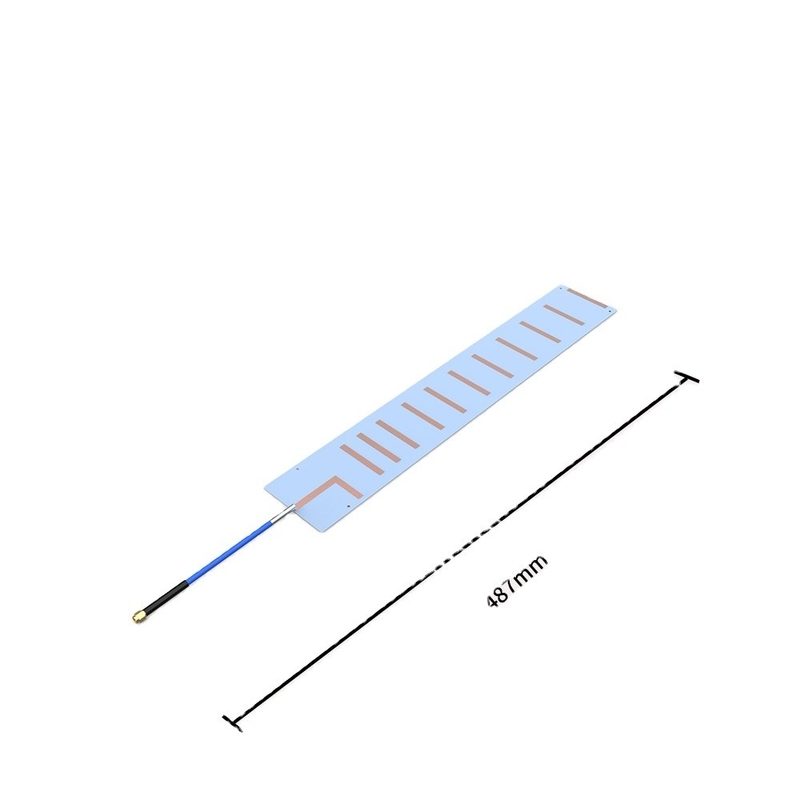

RFSMA Male Yagi Drone Jammer Antenna 50 Ohm 13 DBi High Gain 2

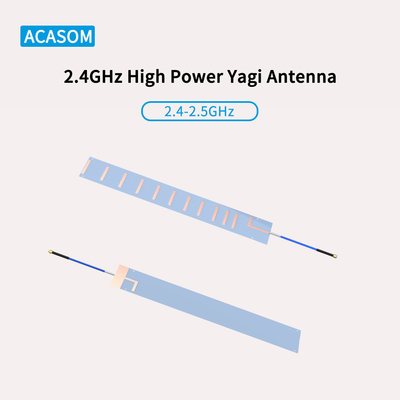

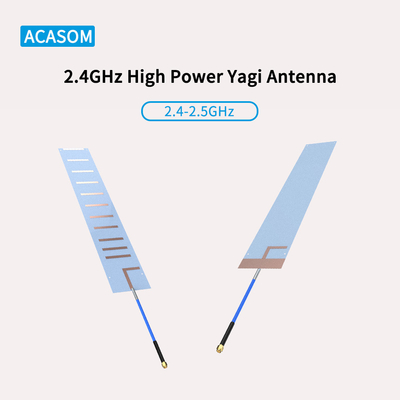

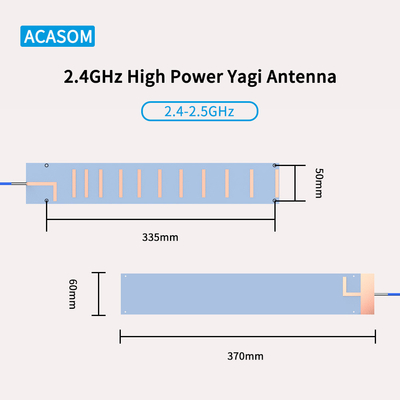

2.4GHz Yagi Antenna For Drone Blocker, High Power 50W, High Gain Antenna
Frequency:2.4GHz-2.5GHz
RFIN POWER : 47dBm(50W)
ACASOM accept customizing the Frequency you need

High quality parts for jarmming gun
