Product Details:
|
Type: | RF Module | Chipset: | Self Designed PCBA |
---|---|---|---|
Supplier Type: | Wholesale And Engineering | Application: | Home; Hospital |
Frequency Range: | 900MHz-940MHz;2.4GHz,5.2GHz,5.8GHz | Gain: | 9dBi |
VSWR: | <1.5:1 | Horizontal Beamwidth: | 71.1° |
Vertical Beamwidth: | 57.3° | Nominal Impedance: | 50 Ohms |
F/B Ratio: | >25dB | Max Input Power: | 30 W |
Port Connectors: | SMA-Male | Product Name: | Panel Antenna |
Highlight: | Antenna Anti Drone 5.8GHz,High Gain Directional Antenna,9dBi Antenna Anti Drone |

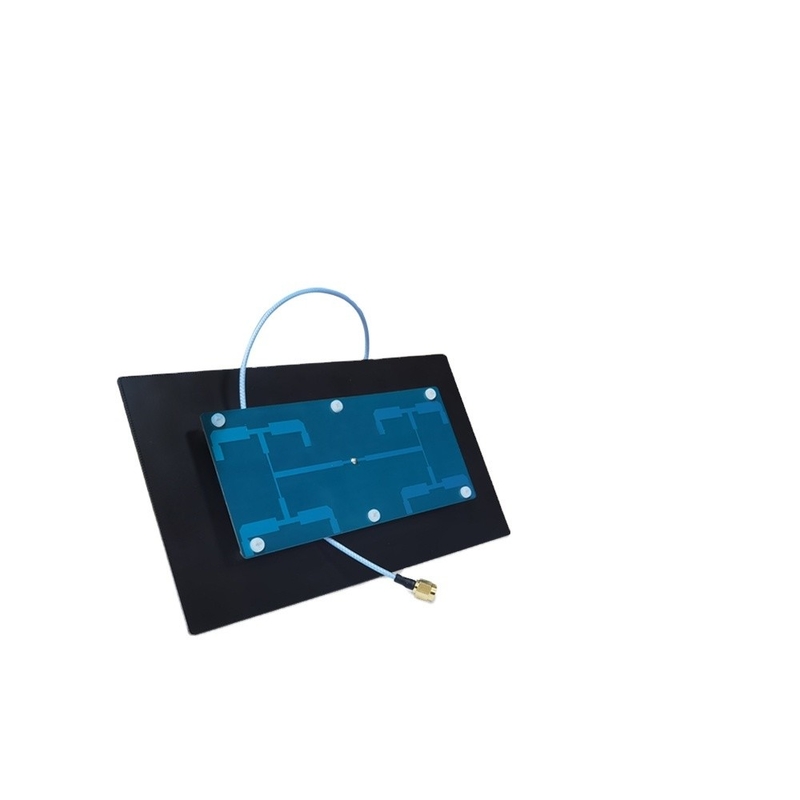

High Gain Directional Antenna For Drone Blocking At 5.8GHz, 2.4GHz
1.Descriptions
High Gain Directional Antenna For Drone Blocking At 5.8GHz, 2.4GHz
This high-gain directional antenna is designed for drone jamming in the 5.8GHz and 2.4GHz frequency bands. Its optimized gain and directivity can effectively block and suppress drone signals, ensuring stable signal coverage in complex environments, making it ideal for anti-drone systems and security monitoring applications.
2.Product Specifications
No. | Items | Parameter |
1 | Frequency range | 900-940MHz |
2 | Gain | 9 dBi |
3 | VSWR | <1.5:1 |
4 | Polarization | Horizontal or Vertical |
5 | Vertical Beamwidth | 71.1° |
6 | Nominal Impedance | 50 Ohms |
7 | Port Connectors | SMA-Female |
8 | Vertical Beamwidth: | 57.3° |
9 | Max Input Power: | 30 W |
10 | Lightning Protection | DC Ground |
3.Product Advantages
4.Product details
Dimensions

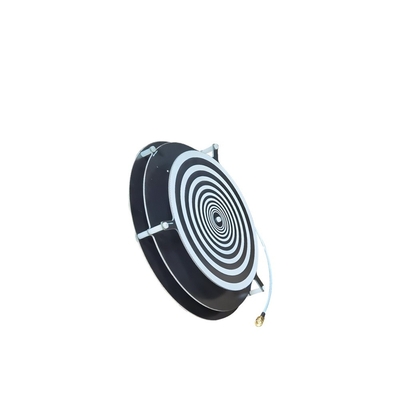

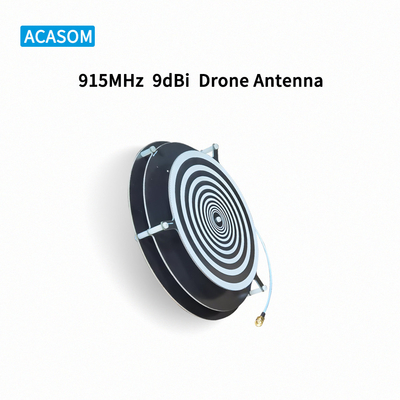

900MHz Antenna For Drone Amplifier, High Power 50W, High Gain Antenna
Frequency:900MHz-940MHz
Hign Gain : 9dB
ACASOM accept customizing the Frequency you need!
How to use
1 Since the antenna is soft, please fix it
2 Since the power of the amplifier is relatively large, please connect
the connector better and then supply power to the module.
3 Antenna should be screwed first, then plug the power adapter
