Outdoor Base Station RFSMA Male FPV Yagi Antenna For 1.6GHz Drone Blocking

Certification
China ACASOM CO., LIMITED certification
I'm Online Chat Now

Outdoor Base Station RFSMA Male FPV Yagi Antenna For 1.6GHz Drone Blocking

Outdoor Base Station RFSMA Male FPV Yagi Antenna For 1.6GHz Drone Blocking
Outdoor Base Station RFSMA Male FPV Yagi Antenna For 1.6GHz Drone Blocking Outdoor Base Station RFSMA Male FPV Yagi Antenna For 1.6GHz Drone Blocking Outdoor Base Station RFSMA Male FPV Yagi Antenna For 1.6GHz Drone Blocking Outdoor Base Station RFSMA Male FPV Yagi Antenna For 1.6GHz Drone Blocking Outdoor Base Station RFSMA Male FPV Yagi Antenna For 1.6GHz Drone Blocking

Large Image :  Outdoor Base Station RFSMA Male FPV Yagi Antenna For 1.6GHz Drone Blocking

Product Details:
Place of Origin: Shenzhen
Brand Name: ACASOM
Model Number: ACA-Aten1650S1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25.00/sets >=1 sets
Packaging Details: As required
Delivery Time: 3-5 worker days
Payment Terms: T/T, Western Union
Supply Ability: 20000 Set/Sets per Month

Outdoor Base Station RFSMA Male FPV Yagi Antenna For 1.6GHz Drone Blocking

Description
Features: High Power Application: Drone Signal Blocking Parts
Type: Blocker Series: Super Drone Signal Blocker
Mounting Type: Self-installing Description: High Power Signal Blocking Device
Manufacturing Date Code: 202301XX Product Name: 1.6GHz Drone Signal Blocker
Frequency: 1.56gHZ-1.62Ghz Gain: 8 DBi
VSWR: <1.5:1 Polarization: Horizontal Or Vertical
Horizontal Beamwidth: 26° Vertical Beamwidth:: 23°
Nominal Impedance:: 50 Ohms F/B Ratio: >20dB
Lightning Protection: DC Ground Port: Shenzhen/Shanghai
Highlight:

1.6GHz FPV Yagi Antenna

,

anti drone antenna 1.6GHz

,

Drone Blocking FPV Yagi Antenna

Outdoor Base Station RFSMA Male Yagi Antenna For 1.6GHz Drone Blocking

Product overview

Outdoor Base Station RFSMA Male FPV Yagi Antenna For 1.6GHz Drone Blocking 0

Outdoor Base Station RFSMA Male FPV Yagi Antenna For 1.6GHz Drone Blocking 1

1.Descriptions

Outdoor Base Station RFSMA Male Yagi Antenna for 1.6GHz Drone Blocking

This outdoor base station RFSMA male Yagi antenna is designed for drone jammers in the 1.6GHz band. Its high gain and directional characteristics ensure strong signal coverage in a specific direction, making it suitable for anti-drone systems and wireless monitoring applications, and can effectively block and suppress drone signals.

2.Product Specifications

No. Items Specifications
1 Frequency range 1575-1620MHz
2 Gain 8 dBi
3 VSWR <1.5:1
4 Polarization Horizontal or Vertical
5 Horizontal Beamwidth 26°
6 Vertical Beamwidth 23°
7 Nominal Impedance 50 Ohms
8 F/B Ratio >20dB
9 Max Input Power 50 W
10 Lightning Protection DC Ground

3.Product Advantages

  • Directional Yagi Design The Yagi antenna structure provides excellent directivity, which can focus the signal in the target direction, effectively enhance the signal strength and reduce interference.
  • Optimized for 1.6GHz The antenna is specially designed for the 1.6GHz frequency band to ensure the best signal enhancement effect at this frequency and enhance the anti-drone capability.
  • Outdoor Applicability Designed for outdoor use, it has good waterproof and weather resistance to ensure stable operation in harsh environments and is suitable for long-term deployment.

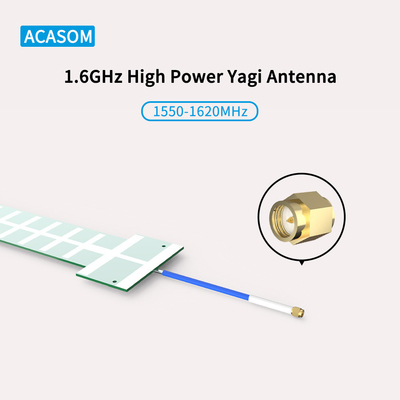

  • RFSMA male connector Equipped with RFSMA male connector, it is compatible with a variety of wireless devices, easy to install, and adaptable to a variety of application scenarios.
  • Widely used in security and monitoring Suitable for anti-drone applications such as airports, military bases and public events, improving the effectiveness and reliability of security protection.

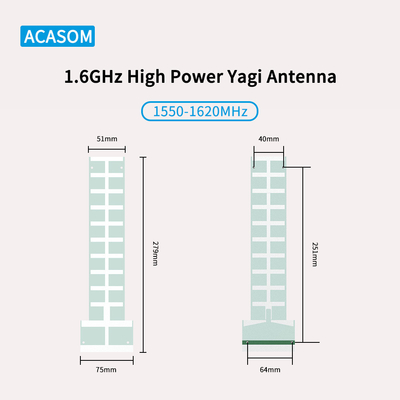

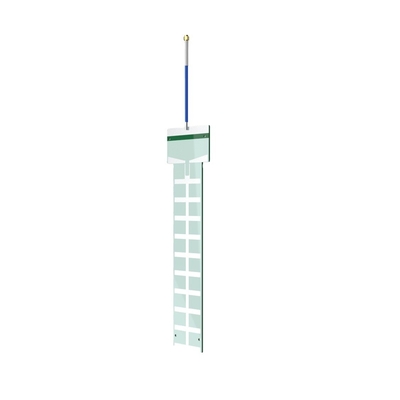

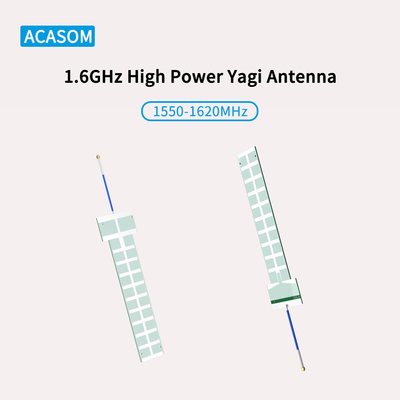

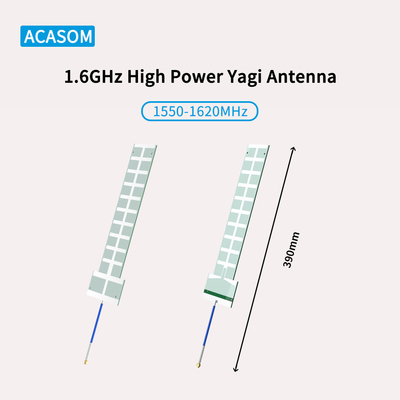

4.Product details

Outdoor Base Station RFSMA Male FPV Yagi Antenna For 1.6GHz Drone Blocking 2



1.6GHz Yagi Antenna For Drone Blocker, High Power 50W, High Gain Antenna
Frequency:5.725GHz-5.85GHz
RFIN POWER : 47dBm(50W)



ACASOM accept customizing the Frequency you need!

1.6GHz Yagi Antenna For Drone Blocker, High Power 50W, High Gain Antenna
Frequency:5.725GHz-5.85GHz
RFIN POWER : 47dBm(50W)
ACASOM accept customizing the Frequency you need!
