20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster

Certification
China ACASOM CO., LIMITED certification
I'm Online Chat Now

20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster

20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster
20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster 20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster 20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster 20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster 20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster

Large Image :  20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster

Product Details:
Place of Origin: Guangdong, China
Brand Name: ACASOM
Model Number: ACA-pannel5820
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $75.00/sets
Delivery Time: 3-5 worker days
Payment Terms: T/T, Western Union
Supply Ability: 3000

20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster

Description
Type: RF Module Chipset: Self Designed PCBA
Supplier Type: Wholesale And Engineering Application: Home; Hospital
Frequency Range: 5.8Ghz Gain: 20dBi
VSWR: <1.5:1 Horizontal Beamwidth: 17.5°
Vertical Beamwidth: 16° Nominal Impedance: 50 Ohms
F/B Ratio: >25dB Max Input Power: 30 W
Port Connectors: SMA-Male Product Name: Panel Antenna
Highlight:

20dBi Long Range Drone Antenna

,

20dBi long range fpv antenna

,

Amplifier Booster Long Range Drone Antenna

20dBi Gain Panel Antenna For FPV High Power Amplifier Booster By Engineering

Product overview

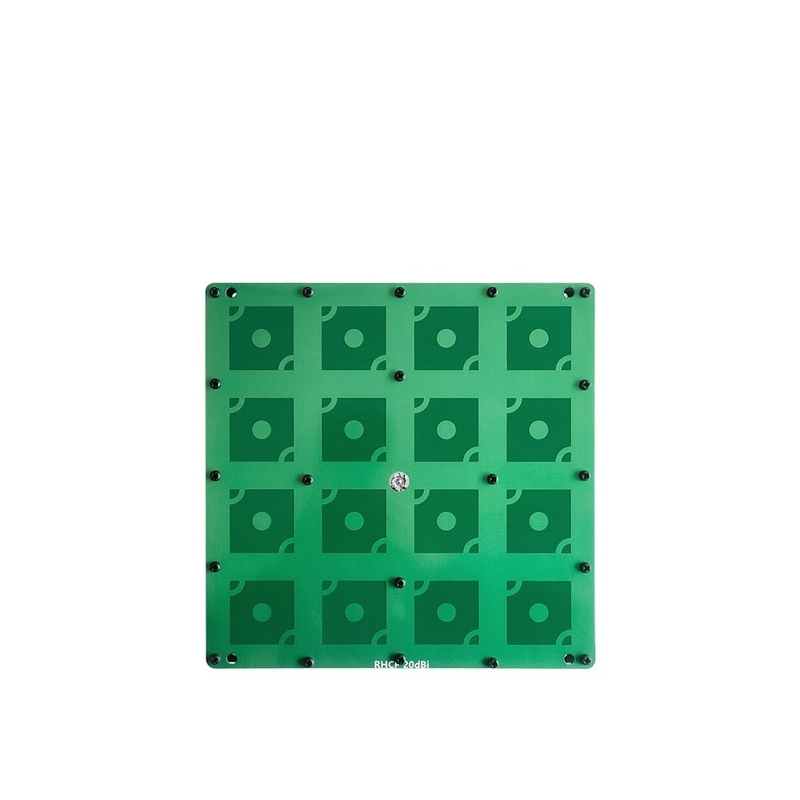

20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster 0

 1.Descriptions

20dBi Gain Panel Antenna For FPV High Power Amplifier Booster By Engineering

This 20 dBi gain planar antenna is specially designed for FPV (First Person View) high power amplifier enhancement. Its high-gain characteristics enable it to significantly improve signal coverage and transmission quality, making it especially suitable for aerial photography, remote control operations, and other application scenarios that require strong signals.

2.Product Specifications

No. Items Parameter
1 Frequency range 5150-5850MHz
2 Gain 21 dB
3 VSWR <1.5:1
4 Polarization Horizontal or Vertical
5 Vertical Beamwidth 16°
6 Nominal Impedance 50 Ohms
7 Port Connectors SMA-Female
8 Product name Panel antenna
9 Max Input Power: 50 W
10 Lightning Protection DC Ground

3.Product Advantages

  • High gain (20 dBi) Provides high gain of 20 dBi, significantly enhancing signal strength and ensuring clear and stable connections over long distance transmission, suitable for various high-demand applications.
  • Flat design The flat antenna design is easy to install, provides wide coverage, is suitable for various environments and scenarios, and enhances signal stability and reliability.
  • Enhanced directivity The combination of high gain and directivity can focus signals in specific directions, improve transmission quality and reduce interference.
  • Compatible with high-power amplifiers Specially designed for use with high-power amplifiers to enhance overall system performance and ensure optimal signal coverage and transmission.
  • Suitable for a variety of applications: It is suitable for FPV aerial photography, UAV control, wireless monitoring and other applications. It is an ideal choice to improve wireless communication and operational performance.

4.Product details

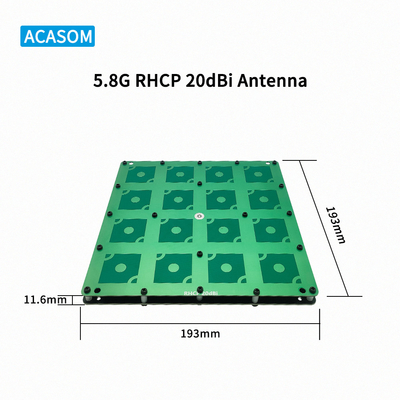

20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster 1

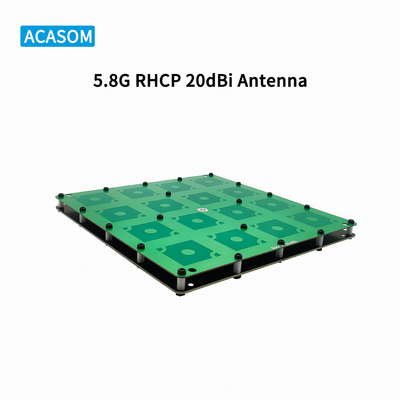

20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster 2

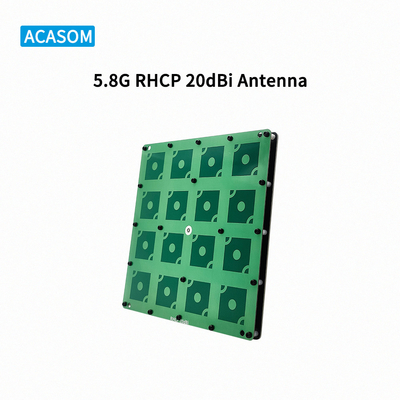

20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster 3

1 Since the antenna is soft, please fix it

2 Since the power of the amplifier is relatively large, please connect
the connector better and then supply power to the module.

3 Antenna should be screwed first, then plug the power adapter

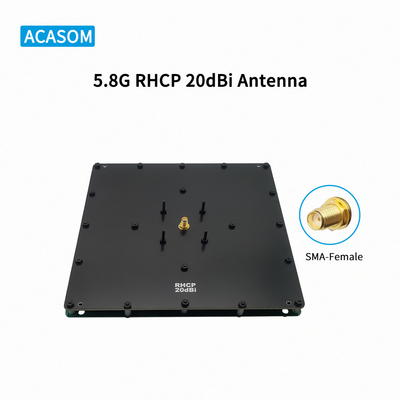

20dBi Gain Panel Long Range Drone Antenna For High Power Amplifier Booster 4



5500-5900MHz High Gain Panell Antenna
Antenna For Drone Amplifier, High Power 30W, High Gain Antenna

Hign Gain : 20dB
5.8GHz 20dB RHCP Direction Antenna For Drone FPV, High Gain 20dB, Small Size
AZ HPBW:17°
EL HPBW: 14°



5500-5900MHz High Gain Panell Antenna
Antenna For Drone Amplifier, High Power 30W, High Gain Antenna

Hign Gain : 20dB
5.8GHz 20dB RHCP Direction Antenna For Drone FPV, High Gain 20dB, Small Size
AZ HPBW:17°
EL HPBW: 14°
