Product Details:
|
Type: | RF Module | Chipset: | GaAs |
---|---|---|---|
Supplier Type: | PCBA Module | Application: | Drone WiFi Amplier Booster |
Working Frequency: | 2.4-2.5GHz | Rx Gain: | 17dB |
Tx Gain: | 18dB | Output Power: | 5W(37dBm) |
Input Trigger Power: | 3-20dBm | Power Supply: | 6-16V |
Size: | 70*50*8mm | Color: | Green |
LED Indicator: | RED/GREEN | Customized: | TX/RX Gain |
Highlight: | 5W Signal Booster Antenna,5W fpv drone antenna,2.5GHz Signal Booster Antenna |

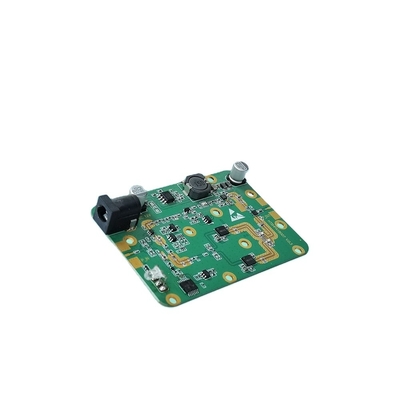

Green 5W Signal Booster Antenna For DJI Mavic FPV Drones 2.4-2.5GHz Frequency
1.Descriptions
Green 5W Signal Booster Antenna For DJI Mavic FPV Drones 2.4-2.5GHz Frequency
This green 5W signal boost antenna is designed for DJI Mavic and FPV drones, operating at 2.4-2.5GHz. Its powerful 5W output and optimized antenna design ensure stable signal coverage during long-distance flight, enhancing the control and image transmission quality of the drone, making it ideal for aerial photography and high-intensity operations.
Number |
Items |
Specifications |
1 |
Frequency Range |
2.4-2.5GHz |
2 |
Operating Voltage |
6-16V |
3 |
ReceivingGain |
17dB±1 |
4 |
Transmission Gain: |
18dB±1 |
5 |
Max Output Power(P1dB) |
37dBm(5W) |
6 |
Input Trigger Power |
Min:3dBm Max:20dBm |
7 |
EVM |
3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
8 |
Noise Figure |
<2.5dB |
9 |
Current Supply |
580mA@Pout 28dBm 12V |
10 |
TX/RX Switch Time Delay |
1us |
11 |
LED Indicator |
Transmitter: Green; Receiver: red |
12 |
OperatingTemperature |
-30℃~+70℃ |
13 |
StorageTemperature |
-40℃~+150℃ |
14 |
Operating Humidity |
Up to 95% rel. humidity |
15 |
RF Connector |
- |
16 |
Power Socket |
5.5*2.1mm |
17 |
Shell Size |
70*50*8mm |
18 |
Shell Material |
- |
19 |
Net Weight |
0.08Kg |
3.Product Advantages
4.Product details

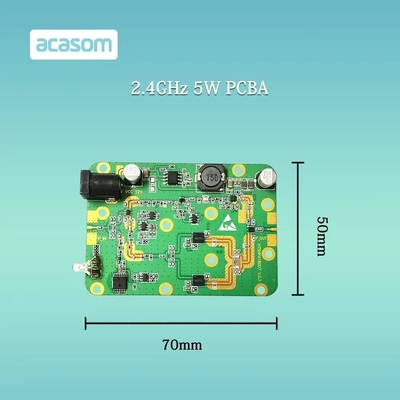

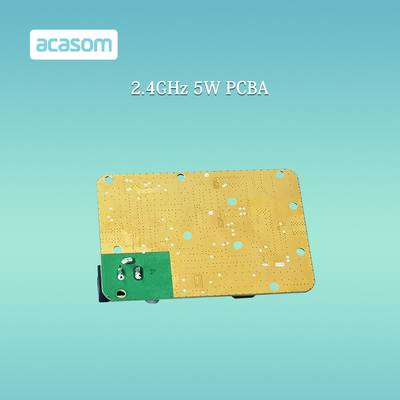

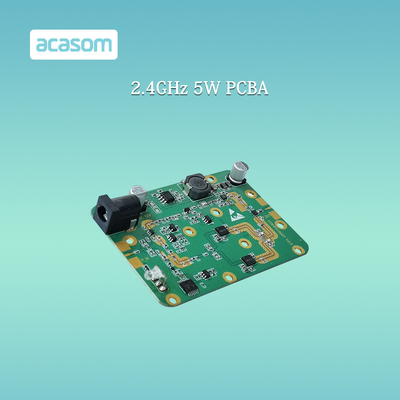

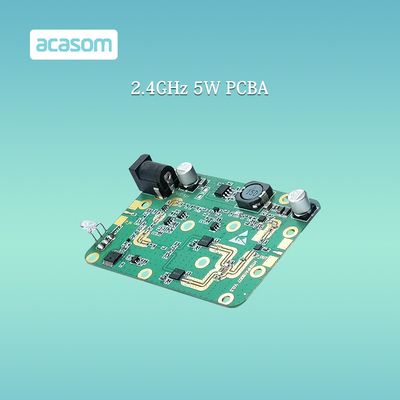

ACASOM 2.4GHz 5W Signal Booster/ Etender
Working Band: 2.4-2.5GHz
Output Power: 5W(37dBm)
2.4GHz 5W WLAN transmission module is compatible with ZigBee,Bluetooth and time division duplexing method of WLAN.
2.4Ghz RF transceiver and receiver amplifier module can be used for industrial data transmission, wireless remote control, wireless mouse, wireless keyboard, wireless electronic label, remote control toy, 2.4g wireless amplifier, wireless microphone, wireless speaker,wireless led control, smart home,UAV etc.
