Product Details:
|
| Type: | FPV Extender | Chipset: | Self Designed PCBA |
|---|---|---|---|
| Supplier Type: | Wholesale And Engineering | Frequency Bands: | 5.8GHz |
| Application: | Home; Hospital | Frequency Range: | 5.8GHz |
| Voltage: | 10W 20W 25W | Receiving Gain: | 16dB±1 |
| Transmission Gain: | 18dB±1 | Max Output Power(P1dB): | 40dBm(10W) |
| Input Trigger Power: | Min:3dBm Max:20dBm | EVM: | 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
| Current Supply: | 2A | TX/RX Switch Time Delay: | <1 Us |
| LED Indicator: | Transmitter: Red; Receiver: Green | Port: | Shenzhen/Shanghai |
| Charging Port: | 22V | Battery: | 8000mah With Type C |
| Highlight: | Comprehensive 900mhz Signal Booster,5.8GHz Power Amplifier Stable,Stable 900mhz Signal Booster |
||
Product overview
1.Descriptions

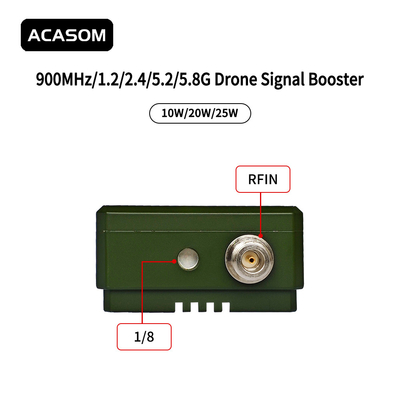

Comprehensive Signal Boosting Enhancing 900MHz To 5.8GHz Drone Performance
Improve the signal performance of drones in the 900MHz to 5.8GHz frequency band, ensuring more stable flight and longer distance. Through comprehensive signal enhancement technology, you can enjoy the best flight experience and clearer data transmission regardless of the frequency band.
| No. | Items | 5.8G |
| 1 | Frequency range | 900MHz |
| 2 | Antenna gain | 15db±1 |
| 3 | Receiving gain | 16dB±1 |
| 4 | Transmission gain | 18dB±1 |
| 5 | Max Output Power(P1dB) | 40dBm(10w) |
| 6 | Input Trigger Power | Min:3dBm Max:23dBm |
| 7 | EVM | 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
| 8 | Noise Figure | ＜2.5dB |
| 9 | Current Supply | 2.2A@Pout40dBm 12V |
| 10 | TX/RX Switch Time Delay | ＜1 μs |
| 11 | LED Indicator | 4 Blue LED |
| 12 | Power Socket | 2.5*0.7mm |
| 13 | Shell Material | Aluminum |
| 14 | Shell Size | 147*87.5*45.5(mm) |
| 15 | Battery | 8000mah with type c |
3.Product Advantages
4.Product details
