Product Details:
|
| Type: | FPV Extender | Chipset: | Self Designed PCBA |
|---|---|---|---|
| Supplier Type: | Wholesale And Engineering | Frequency Bands: | 2.4GHz 5.8GHz |
| Application: | Home; Hospital | Frequency Range: | 2.4GHz |
| Voltage: | 10W 20W | Receiving Gain: | 16dB±1 |
| Transmission Gain: | 18dB±1 | Max Output Power(P1dB): | 40dBm(10W) |
| Input Trigger Power: | Min:3dBm Max:20dBm | EVM: | 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
| Current Supply: | 2.2A@Pout40dBm 12V | TX/RX Switch Time Delay: | <1 Us |
| LED Indicator: | Transmitter: Red; Receiver: Green | Port: | Shenzhen/Shanghai |
| Highlight: | Drone Wifi Signal Booster 10Watt,Drone Wifi Signal Booster 40dBm,drone wifi extender 40dBm |
||
Product overview
1.Descriptions

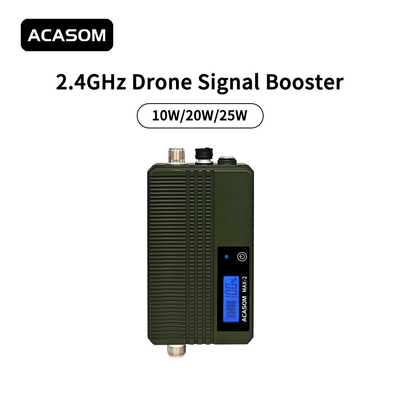

Take Flight Further 2.4GHz Drone Signal Enhancement Techniques
Improving the flight distance and signal stability of drones is the pursuit of every flying enthusiast. 2.4GHz signal enhancement technology focuses on using a variety of methods and equipment to significantly improve the signal quality of drones in this frequency band, giving you a better experience during flight.
| No. | Items | 2.4G |
| 1 | Frequency range | 1160MHz -1280MHz |
| 2 | Antenna gain | 15db±1 |
| 3 | Receiving gain | 16dB±1 |
| 4 | Transmission gain | 18dB±1 |
| 5 | Max Output Power(P1dB) | 40dBm(10w) |
| 6 | Input Trigger Power | Min:3dBm Max:23dBm |
| 7 | EVM | 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
| 8 | Noise Figure | ＜2.5dB |
| 9 | Current Supply | 2.2A@Pout40dBm 12V |
| 10 | TX/RX Switch Time Delay | ＜1 μs |
| 11 | LED Indicator | 4 Blue LED |
| 12 | Power Socket | 2.5*0.7mm |
| 13 | Shell Material | Aluminum |
| 14 | Shell Size | 147*87.5*45.5(mm) |
| 15 | Battery | 8000mah with type c |
3.Product Advantages
4.Product details
