Product Details:
|
| Type: | FPV Extender | Chipset: | Self Designed PCBA |
|---|---|---|---|
| Supplier Type: | Wholesale And Engineering | Frequency Bands: | 2.4GHz 5.8GHz |
| Application: | Home; Hospital | Frequency Range: | 1.2GHz |
| Voltage: | 10W 20W | Receiving Gain: | 16dB±1 |
| Transmission Gain: | 18dB±1 | Max Output Power(P1dB): | 40dBm(10W) |
| Input Trigger Power: | Min:3dBm Max:20dBm | EVM: | 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
| Current Supply: | 2.2A@Pout40dBm 12V | TX/RX Switch Time Delay: | <1 Us |
| LED Indicator: | Transmitter: Red; Receiver: Green | Port: | Shenzhen/Shanghai |
| Highlight: | 20W FPV Signal booster,FPV Signal booster 1.2GHz,1280MHz Drone Signal booster |
||
Product overview
1.Descriptions

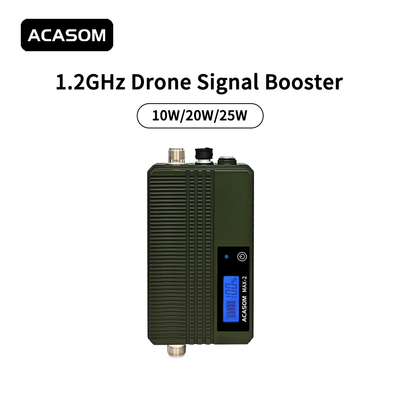

Elevate Your Flight 10W/20W Drone FPV Signal Amplifier 1.2-1280MHz
Improve your drone flight experience! This 10W/20W drone FPV signal amplifier supports 1.2-1280MHz frequency band and is designed to improve signal strength and stability. Whether flying over long distances or taking high-definition aerial photos, it ensures you get clear image transmission and reliable signal coverage.
| No. | Items | 1.2G |
| 1 | Frequency range | 1160MHz -1280MHz |
| 2 | Antenna gain | 15db±1 |
| 3 | Receiving gain | 16dB±1 |
| 4 | Transmission gain | 18dB±1 |
| 5 | Max Output Power(P1dB) | 40dBm(10w) |
| 6 | Input Trigger Power | Min:3dBm Max:23dBm |
| 7 | EVM | 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
| 8 | Noise Figure | ＜2.5dB |
| 9 | Current Supply | 2.2A@Pout40dBm 12V |
| 10 | TX/RX Switch Time Delay | ＜1 μs |
| 11 | LED Indicator | 4 Blue LED |
| 12 | Power Socket | 2.5*0.7mm |
| 13 | Shell Material | Aluminum |
| 14 | Shell Size | 230*146*39(mm) |
| 15 | Battery | 8000mah with type c |
3.Product Advantages
4.Product details
