2.4GHz 5.8GHz Signal Booster Antenna DJI Remote Controller Connection

Large Image : 2.4GHz 5.8GHz Signal Booster Antenna DJI Remote Controller Connection

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ACASOM
Model Number:	ACA-ROC4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$750.00/sets
Packaging Details:	As required
Delivery Time:	3-5 work days
Payment Terms:	T/T, Western Union
Supply Ability:	1800 Set/Sets per Month

Contact Now

2.4GHz 5.8GHz Signal Booster Antenna DJI Remote Controller Connection

Description

Type:	RF Transceiver& Receiver	Chipset:	Self Designed PCBA
Supplier Type:	Wholesale And Engineering	Application:	Home; Hospital
Frequency Range:	2400-2500MHz 5725-5850MHz	Voltage:	5V2A
Receiving Gain:	16dB±1	Transmission Gain:	18dB±1
Max Output Power(P1dB):	40dBm(10W)	Input Trigger Power:	Min:3dBm Max:20dBm
EVM:	3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz	Current Supply:	2.2A@Pout40dBm 12V
TX/RX Switch Time Delay:	<1 Us	LED Indicator:	Transmitter: Red; Receiver: Green
Port:	Shenzhen/Shanghai	Model:	DB-100
Highlight:	5.8GHz Signal Booster Antenna , 2.4GHz Signal Booster Antenna , 5.8GHz signal boosting device

Product overvie

2.4GHz 5.8GHz Signal Booster Antenna DJI Remote Controller Connection 0

1.Descriptions

Upgrade Your DJI Remote Controller s Connection with 2.4GHz 5.8GHz Dual Band Adapter

Upgrade Your DJI Remote Controller's Performance with 2.4GHz 5.8GHz Dual Band Adapter Enhance your DJI drone's performance with the 2.4GHz 5.8GHz Dual Band Adapter, designed to boost your remote controller’s signal strength, stability, and range. This cutting-edge adapter utilizes dual-band technology, automatically switching between the 2.4GHz and 5.8GHz frequencies to ensure a strong and uninterrupted connection between your DJI controller and drone, even in areas with high interference.

2.Product Specifications

In-built 8000mah Dual band integrated wireless remote controller
No.	Items	2.4G	5.8G
1	Frequency range	2400MHz-2500MHz	5.725-5.85GHz
2	Antenna gain	15db±1	18db±1
3	Receiving gain	16dB±1	18db±1
4	Transmission gain	18dB±1	18dB±1
5	Max Output Power(P1dB)	40dBm(10w)	40dBm(10w)
5	Max Output Power(P1dB)	40dBm(10w)	40dBm(10w)
6	Input Trigger Power	Min:3dBm Max:23dBm	Min:3dBm Max:23dBm
7	EVM	3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz	3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz
8	Noise Figure	＜2.5dB	<2.5dB
9	Current Supply	2.2A@Pout40dBm 12V	2.2A@Pout40dBm 12V
10	TX/RX Switch Time Delay	＜1 μs	＜1 μs
11	LED Indicator	4 Blue LED	4 Blue LED
12	Power Socket	2.5*0.7mm	2.5*0.7mm
13	Shell Material	Aluminum	Aluminum

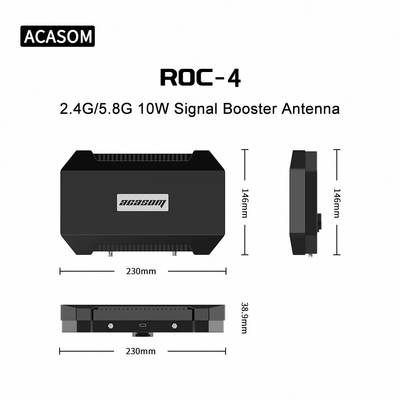

14	Shell Size	23014639(mm)	23014639(mm)
15	Battery	8000mah with type c	8000mah with type c

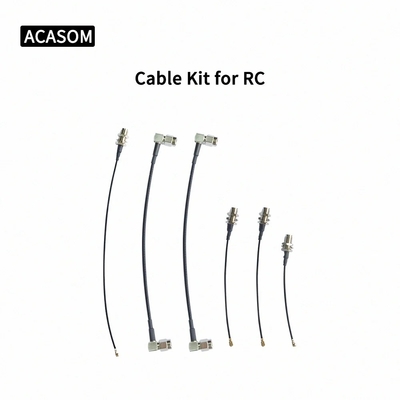

Complimentary related accessories - excluding brackets

Brankets( Purchase separately if need)

3.Product Advantages

Dual-Band Technology (2.4GHz/5.8GHz)
Seamlessly switch between two frequency bands, ensuring optimal signal transmission and minimizing interference from crowded environments like urban areas, airports, or events with multiple devices operating on similar frequencies.
Enhanced Signal Range and Stability
Significantly extend your flight range and improve the stability of your connection. The dual-band adapter ensures that your remote controller can maintain a solid signal over long distances, giving you more freedom and confidence during flights.
Improved Flight Experience
With better signal reception and less interference, you'll enjoy smoother, more reliable control of your DJI drone, reducing the risk of connection drops or signal delays, especially in challenging environments.
Wide Compatibility
This adapter is compatible with a wide range of DJI drones, including popular models like the DJI Mavic series, DJI Phantom, and DJI Spark. Whether you’re a beginner or a professional, this adapter works seamlessly with your current equipment to elevate your flying experience.
