Product Details:
|
Features: | Easy -installing | Application: | RF Signal |
---|---|---|---|
Type: | Wholesale & Engineering | Series: | Amplifier |
Mounting Type: | Self Installing | Description: | High Efficiency |
Manufacturing Date Code: | 202301xx | Frequency Range: | 2400-2500MHz |
Voltage: | 8-18v | Receiving Gain: | 17db±1 |
Transmission Gain: | 17db±1 | Max Output Power(P1dB): | 43dBm(20w) |
Input Trigger Power: | Min:5dBm Max:20dBm | EVM: | 3%@37dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
Current Supply: | 1.2A@Pout 37dBm 12V | TX/RX Switch Time Delay: | <1 Us |
RF Connector: | Input: SMA-female; Output: SMA-female | Port: | Shenzhen/Shanghai |
Highlight: | 2400MHz RF Signal Extender,High Efficiency FPV Signal Extender,2400MHz fpv signal booster |
2400MHz RF Extender for 2.4GHz Drone Signal Booster Signal Enhancement Device Dji FPV EVO
1.Descriptions
2400MHz RF Extender for 2.4GHz Drone Signal Booster Signal Enhancement Device Dji FPV EVO
A 2400MHz RF Extender designed for 2.4GHz Drone Signal Booster is an essential device that enhances and extends the communication range for drones, particularly those using the 2.4GHz band. It is ideal for DJI FPV, Autel EVO, or similar drones, allowing for stronger signal transmission and reception, ensuring a more reliable connection over greater distances.
2.Product Specifications
No. | Items | Specifications |
1 | Frequency range | 2400MHz-2500MHz |
2 | Operating Voltage | 8-18V |
3 | Receiving gain | 17dB卤1 |
4 | Transmission gain | 17dB卤1 |
5 | Max Output Power(P1dB) | 37dBm(5W) |
6 | Input Trigger Power | Min:3dBm Max:20dBm |
7 | EVM | 1.2A@Pout 37dBm 12V |
8 | RF Connector | Input: SMA-female; Output: SMA-female |
15 | Net Weight | 0.35Kg |

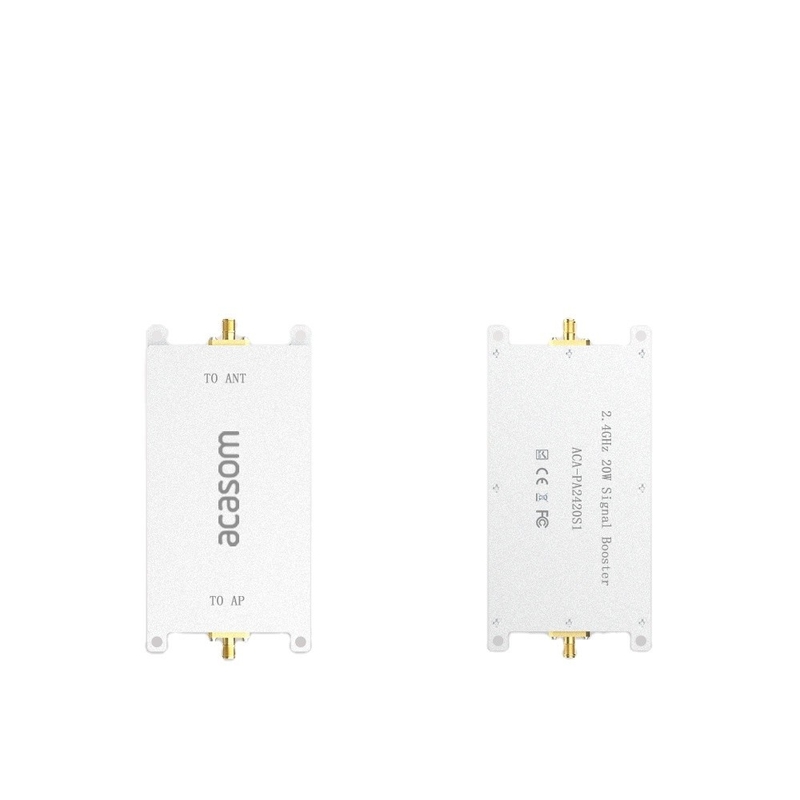

ACASOM 2.4GHz Signal Booster/Etender
Design For
DJI Mavic 3 Classic Mavic 3 Mavic 2
DJI Air2S Air2
DJI Mini3 Mini3 Pro Mini2
DJI Avata
DJI RC Pro
DJI Phantom4 Pro Phantom4 Pro V2.0
DJI Inspire2
Autel Lite+/Nano
Autel EVO/EVOⅡ/P
Working Band: 2.4-2.5GHz
Output Power:20W / 43dBm
3.Product Advantages
4.Product details
