Product Details:
|
| Type: | RF Module | Chipset: | Self Designed PCBA |
|---|---|---|---|
| Supplier Type: | Wholesale And Engineering | Application: | Home; Hospital |
| Frequency Range: | 5725-5850MHz | Voltage: | 6-18V |
| Receiving Gain: | 17dB±1 | Transmission Gain: | 17dB±1 |
| Max Output Power(P1dB): | 36dBm(4W) | Input Trigger Power: | Min:3dBm Max:20dBm |
| EVM: | 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz | Current Supply: | 540mA@Pout 28dBm 12V |
| TX/RX Switch Time Delay: | <1 Us | LED Indicator: | Transmitter: Red; Receiver: Green |
| Port: | Shenzhen/Shanghai |
1.Descriptions
Boost Your Signal 540mA 28dBm 12V 5.8GHz WiFi Module For Extended Coverage
This 12V 5.8GHz WiFi module, with 28dBm gain and 540mA power consumption, is designed for extending wireless signal coverage. Its high performance ensures stable signal transmission in various environments, making it ideal for enhancing home and commercial wireless networks.
2.Product Specifications
| No. | Items | Specifications |
| 1 | Frequency range | 5725MHz-5850MHz |
| 2 | Operating Voltage | 6-18V |
| 3 | Receiving gain | 17dB±1 |
| 4 | Transmission gain | 17dB±1 |
| 5 | Max Output Power(P1dB) | 36dBm(4w) |
| 6 | Input Trigger Power | Min:3dBm Max:20dBm |
| 7 | EVM | 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
| 8 | Noise Figure | ＜2.5dB |
| 9 | Current Supply | 540mA@Pout 28dBm 12V |
| 10 | TX/RX Switch Time Delay | ＜1 μs |
| 11 | LED Indicator | Transmitter: red; Receiver: Green |
| 12 | Power Socket | 2.5*0.7mm |
| 13 | Shell Material | Aluminum |
| 14 | Shell Size | 64*35*13(mm) |
| 15 | Net Weight | 0.15Kg |
3.Product Advantages
4.Product details

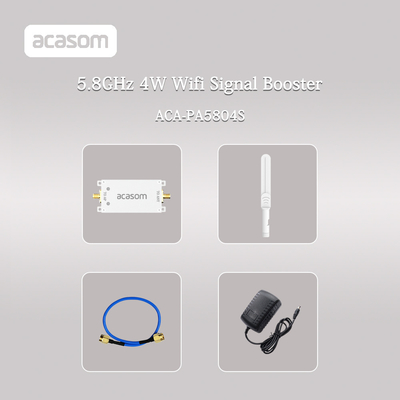

What includes if you order this?
1PCS* 5.8GHz Booster
1PCS*5.8GHz 5dBi Antenna
1PCS*12V 1A EU/AU Adapter
1PCS* RG402 Blue Cable (20CM)
5.8GHz 4W Signal Booster FOR WiFi6
Frequency:5.725GHz-5.85GHz
RX Gain: RX=17
TX Gain: TX=17
Connector Type:SMA or PCBA
Applications
IEEE 802.11 a/n/wifi6 WLAN System
Wireless Cameras Signal Extender
Drone Signal Extender
Features
50X the power, improving the link quality and coverage of certified WLAN devices
2.5dB ultra-low noise
Wide 6V to 18V operating input range
Working with certified IEEE 802.11b/g/n Wireless LAN devices
Simply plug and installing, no software is required
