Product Details:
|
| Features: | Easy -installing | Application: | RF Signal |
|---|---|---|---|
| Type: | Wholesale & Engineering | Series: | Amplifier |
| Mounting Type: | Self Installing | Description: | High Efficiency |
| Manufacturing Date Code: | 202301xx | Frequency Range: | 2400-2500MHz |
| Voltage: | 6-18V | Receiving Gain: | 17dB±1 |
| Transmission Gain: | 17dB±1 | Max Output Power(P1dB): | 37dBm(5W) |
| Input Trigger Power: | Min:3dBm Max:20dBm | EVM: | 3%@29dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
| Current Supply: | 640mA@Pout 29dBm 12V | TX/RX Switch Time Delay: | <1 Us |
| LED Indicator: | Transmitter: Red; Receiver: Green | Port: | Shenzhen/Shanghai |
| Highlight: | Drone Signal Amplifier 2.4GHz,Drone Signal Amplifier 2.5GHz,2.5GHz drone wifi extender |
||
Wireless Signal Amplifier 2.4GHz To 2.5GHz Wifi Module For High Gain 5W Power Booster
1.Descriptions
Wireless Signal Amplifier 2.4GHz To 2.5GHz Wifi Module For High Gain 5W Power Booster
The Wireless Signal Amplifier 2.4GHz to 2.5GHz WiFi Module is designed to enhance the performance of wireless communication systems, particularly those operating within the 2.4GHz to 2.5GHz frequency range. This module serves as a high gain 5W power booster, making it an excellent solution for improving the range and quality of WiFi signals in various applications.
2.Product Specifications
| No. | Items | Specifications |
| 1 | Frequency range | 2400MHz-2500MHz |
| 2 | Operating Voltage | 6-18V |
| 3 | Receiving gain | 17dB±1 |
| 4 | Transmission gain | 17dB±1 |
| 5 | Max Output Power(P1dB) | 37dBm(5w) |
| 6 | Input Trigger Power | Min:3dBm Max:20dBm |
| 7 | EVM | 3%@29dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
| 8 | Noise Figure | ＜2.5dB |
| 9 | Current Supply | 640mA@Pout 28dBm 12V |
| 10 | TX/RX Switch Time Delay | ＜1 μs |
| 11 | LED Indicator | Transmitter: red; Receiver: Green |
| 12 | Power Socket | 5.5*2.1mm |
| 13 | Shell Material | Aluminum |
| 14 | Shell Size | 96*66*28(mm) |
| 15 | Net Weight | 0.25Kg |
3.Product Advantages
4.Product details

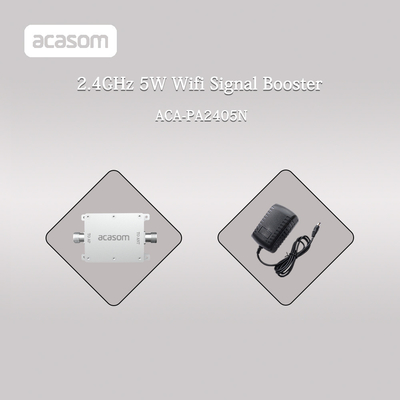

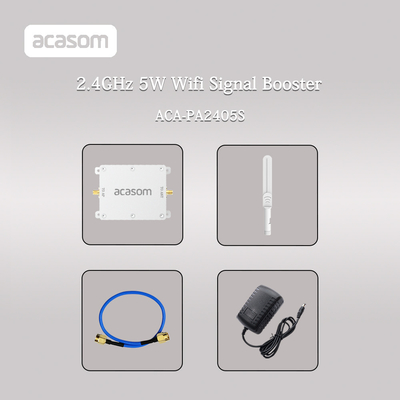

ACASOM 2.4GHz 5W WiFi/Drone Signal Booster/Extender
Working Band: 2.4-2.5GHz
Output Power:5W / 37dBm
Applications
Drone Extender
IEEE WIFI System
Bluetooth/Zigbee Signal Extender
Wireless Cameras Signal Extender
Drone Signal Extender
Features
50X the power, improving the link quality and coverage of certified WLAN devices
2.5dB ultra-low noise
Wide 6V to 18V operating input range
Working with certified IEEE 802.11b/g/n Wireless LAN devices
Simply plug and installing, no software is required
