Efficiency 45% 40dBm 1.4GHz RF Bidirectional Amplifier Module For Wireless Extender

Efficiency 45% 40dBm 1.4GHz RF Bidirectional Amplifier Module For Wireless Extender
Efficiency 45% 40dBm 1.4GHz RF Bidirectional Amplifier Module For Wireless Extender Efficiency 45% 40dBm 1.4GHz RF Bidirectional Amplifier Module For Wireless Extender Efficiency 45% 40dBm 1.4GHz RF Bidirectional Amplifier Module For Wireless Extender Efficiency 45% 40dBm 1.4GHz RF Bidirectional Amplifier Module For Wireless Extender

Large Image :  Efficiency 45% 40dBm 1.4GHz RF Bidirectional Amplifier Module For Wireless Extender

Product Details:
Place of Origin: Shenzhen
Brand Name: ACASOM
Model Number: ACA-Amp 1.4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $159.00 - $199.00/sets
Packaging Details: As required
Delivery Time: 3-5 worker days
Payment Terms: T/T, Western Union
Supply Ability: 20000 Set/Sets per Month

Efficiency 45% 40dBm 1.4GHz RF Bidirectional Amplifier Module For Wireless Extender

Description
Type: RF Module Chipset: GaN High Power Chip
Supplier Type: Self-brand Application: UAV Blocking System
Product Name: 1.4GHz Bidirectional Amplifier Frequency: 1360-1440MHz
Power: 10w(40dbm) Interface: SMA-F
Efficiency: 45%@40dBm Power Socket: 24V DC Or 15cm Red/black Wire
Net Size: 8*4.6*2cm Net Weight: 0.3Kg
Voltage: 12-20V Customized: Size And Supply Voltage
Port: Shenzhen/Shanghai
Highlight:

40dBm RF Bidirectional Amplifier

,

1.4GHz RF Bidirectional Amplifier

,

40dBm rf amplifier module

Efficiency 45% 40dBm 1.4GHz RF Module Bidirectional Amplifier Module For Wireless Extender

Product overview

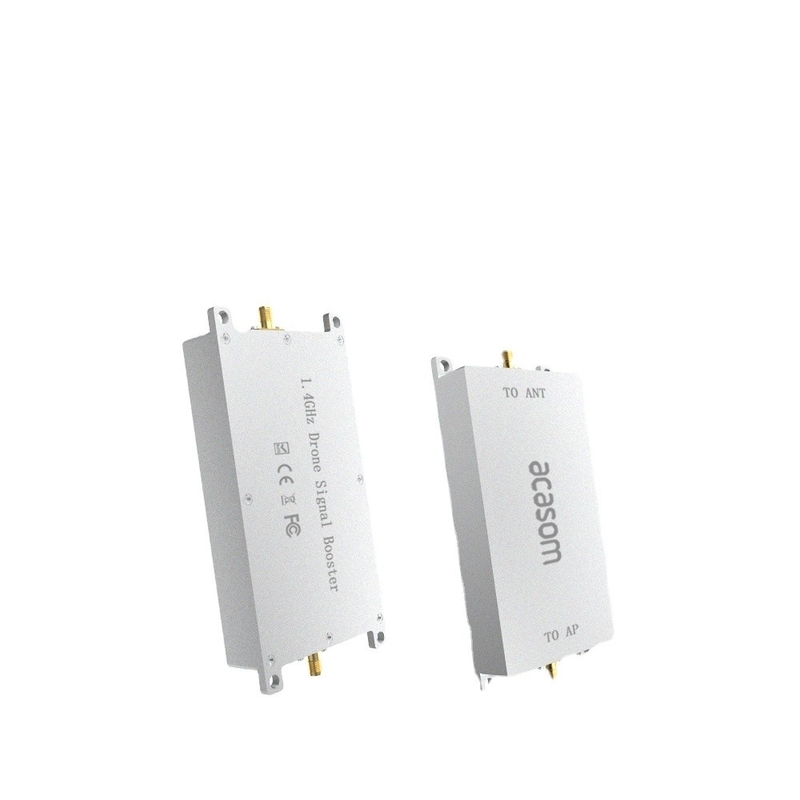

Efficiency 45% 40dBm 1.4GHz RF Bidirectional Amplifier Module For Wireless Extender 0

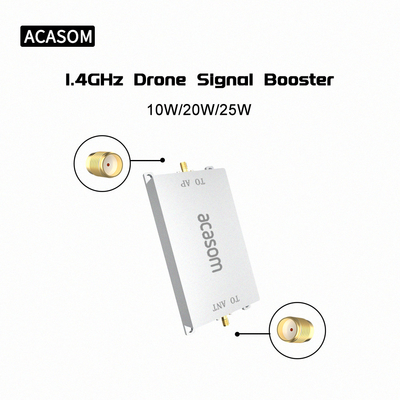

Efficiency 45% 40dBm 1.4GHz RF Bidirectional Amplifier Module For Wireless Extender 1

1.Descriptions

 Efficiency 45% 40dBm 1.4GHz RF Module Bidirectional Amplifier Module For Wireless Extender

This 1.4GHz RF bidirectional amplifier module is designed for wireless extenders and features 40dBm output power and up to 45% efficiency. The module is not only able to amplify the transmission signal, but also enhance the reception signal at the same time, making it an ideal choice for wireless communication systems, especially in application scenarios that require high performance, long distance and stable transmission. It is widely used in wireless network extension, remote monitoring, communication systems and other occasions to ensure bidirectional amplification of signals to optimize the performance of the entire system.

2.Product Specifications

No. Items Specifications
1 Frequency range 1360-1440MHz
2 Operating Voltage 12-20V
3 Transmission gain& Reveiving gain both 18dB±1
4 Output Power 40dBm;43dBm;44dBm
5 Current 1.7A@Pout 34dBm 12V
6 Efficiency 3%@34dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
7 LED State Red
8 Operating Temperature -30℃~85℃
9 Storage Temperature -40℃~150℃
10 Operating Humidity <95%RH
11 Flatness ±0.5dB
12 Power Socket 24V DC or 15cm red/black wire
13 Shell Material Aluminum
14 Shell Size 104*60*17(mm)
15 Net Weight 0.27Kg

3.Product Advantages

  • High efficiency (45%) This module has a 45% high efficiency design, which minimizes energy consumption while providing 40dBm high power output. This not only helps save energy, but also reduces heat generation and improves the life and stability of the equipment.
  • Powerful 40dBm output power The 40dBm output power can significantly increase the signal transmission distance, allowing the wireless extender to maintain a strong and stable signal in a wider area. This is critical for application scenarios that require long-distance communication, ensuring reliable connections to remote devices.
  • Bidirectional amplification function This module not only enhances the sending signal, but also effectively amplifies the receiving signal. The bidirectional amplification function ensures that the communication system can obtain optimized signal quality during transmission and reception, avoid signal attenuation, and improve the stability and efficiency of overall communication.
  • Suitable for 1.4GHz frequency band Designed specifically for the 1.4GHz frequency band, this module optimizes performance in this frequency range and ensures high compatibility with wireless extension devices. This enables it to work with multiple wireless communication standards and is suitable for a variety of wireless systems and applications.
  • Suitable for remote wireless expansion applications This amplifier module is particularly suitable for scenarios that require extended wireless communication range, such as wireless network extension, drone control, remote monitoring and data transmission, etc. It enhances the coverage and stability of the signal and provides strong support for long-distance communication.

4.Product details

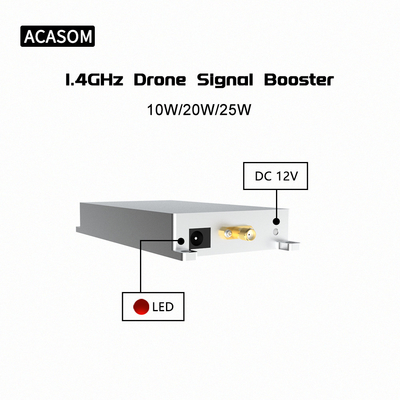

Efficiency 45% 40dBm 1.4GHz RF Bidirectional Amplifier Module For Wireless Extender 2

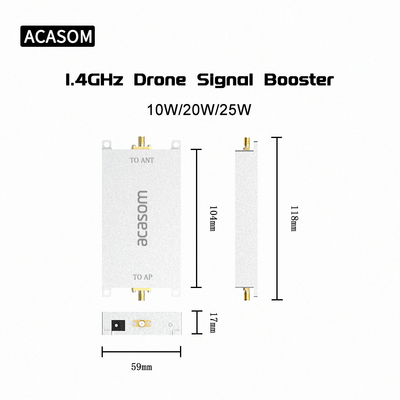

Efficiency 45% 40dBm 1.4GHz RF Bidirectional Amplifier Module For Wireless Extender 3

ACASOM 1.4 GHz Bidirectional amplifier
RFOUT POWER=40dBm(10W)

20w 25w are also available
