Product Details:
|
Features: | High Accuracy | Application: | Amplifier Related Parts |
---|---|---|---|
Type: | Power Supply | Series: | Super Drone |
Mounting Type: | Self Installing | Description: | DC 12V Bias Tee For Amplifier |
Manufacturing Date Code: | 202301XX | Frequency Range: | 2400-2500MHz |
VSWR: | ≤1.3 | Insertion Loss: | ≤0.4dB |
Input Power: | ≤40dBm | Max Current: | ≤3A |
LED Indicator: | Red@DC≥5V | RF Connector: | RFSMA-Female |
Power Supply Port: | 5.5*2.1mm DC Prot | Shell Size: | 43*43*17(mm) |
Net Weight: | 0.1KG | Port: | Shenzhen/Shanghai |
1.Descriptions
Max Output Power P1dB 36dBm 4W Dual Channel Amplifier For 2.4GHz And 5.8GHz Frequencies
This dual-channel amplifier is designed for 2.4GHz and 5.8GHz, with a maximum output power (P1dB) of up to 36dBm (4W), suitable for a variety of wireless communication systems and devices. This amplifier provides excellent signal gain and performance, and excels in enhancing signal coverage and stability. It is widely evaluated in Wi-Fi systems, drones, industrial automation and other scenarios that require reliable signal amplification.
2.Product Specifications
No. | Items | Specifications |
1 | Frequency range | 2400MHz-2500MHz |
2 | Operating Voltage | 5-32V |
3 | VSWR | ≤1.3 |
4 | Insertion Loss | ≤0.4dB |
5 | Input Power | ≤40dBm |
6 | Max Current | ≤3A |

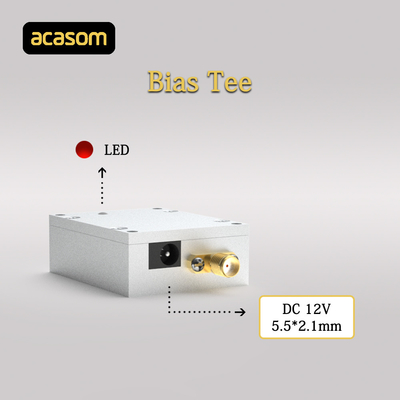

7 | LED indicator | Red@DC≥5V |
8 | Operating Temperature | -30℃~70℃ |
9 | Storage Temperature | -40℃~150℃ |
10 | Operating Humidity | <95%RH |
11 | Flatness | ±0.5dB |
12 | Power Socket | 5.5*2.1mm DC prot |
13 | Shell Material | Aluminum |
14 | Shell Size | 43*43*17(mm) |
15 | Net Weight | 0.10Kg |
3.Product Advantages
4.Product details

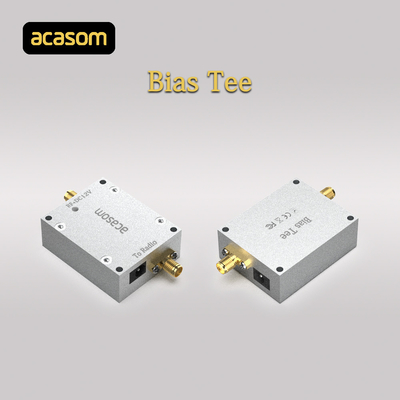

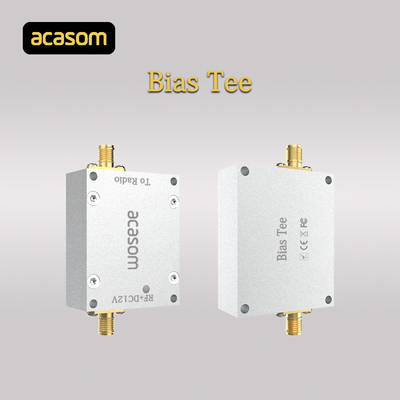

ACASOM 2.4GHz / 5.8GHz Drone BIASTEE
Not an Signal Extender

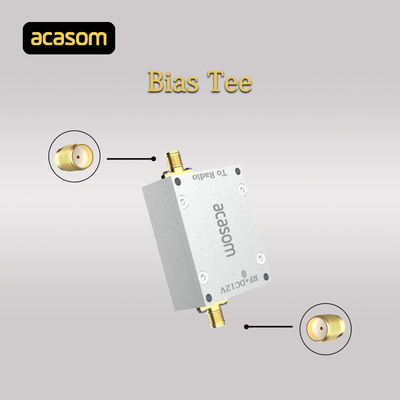

RF Port Connector Series-SMA
Working Frequency-2.4-2.5 GHz /5.15-5.85GH
Insertion Loss≤0.4dB
RF Port Maximum VSWR :1.3:1
Maximum Voltage 30 Volts
Maximum DC Current 3000 mA
