Home Products2.4GHz 5.8GHz Signal Booster

Drone Signal Booster 2.4GHz 10w 20w 40w 100w Amplifier With Jamming Function

Certification
China ACASOM CO., LIMITED certification
I'm Online Chat Now

Drone Signal Booster 2.4GHz 10w 20w 40w 100w Amplifier With Jamming Function

Drone Signal Booster 2.4GHz 10w 20w 40w 100w Amplifier With Jamming Function
Drone Signal Booster 2.4GHz 10w 20w 40w 100w Amplifier With Jamming Function Drone Signal Booster 2.4GHz 10w 20w 40w 100w Amplifier With Jamming Function Drone Signal Booster 2.4GHz 10w 20w 40w 100w Amplifier With Jamming Function Drone Signal Booster 2.4GHz 10w 20w 40w 100w Amplifier With Jamming Function Drone Signal Booster 2.4GHz 10w 20w 40w 100w Amplifier With Jamming Function

Large Image :  Drone Signal Booster 2.4GHz 10w 20w 40w 100w Amplifier With Jamming Function

Product Details:
Place of Origin: Shenzhen
Brand Name: ACASOM
Model Number: ACA-SPA2410S1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $75.00 - $265.00/sets
Packaging Details: As required
Delivery Time: 3-5 worker days
Payment Terms: T/T, Western Union
Supply Ability: 20000 Set/Sets per Month

Drone Signal Booster 2.4GHz 10w 20w 40w 100w Amplifier With Jamming Function

Description
Features: High Power Application: Drone Signal Booster
Type: Amplifier Series: Super Drone Signal Blocker
Mounting Type: Self-installing Description: High Power Signal Blocking Device
Manufacturing Date Code: 202301XX Product Name: 2.4GHz Drone Signal Blocker
Frequency: 2400-2500MHz Power: 47dbm
Interface: SMA-F Efficiency: 45%@47dBm
Power Socket: 28V DC Or 15cm Red/black Wire Net Size: 143*50*21mm
Net Weight: 0.8Kg Customized: Size And Supply Voltage
Material: Auminium Port: Shenzhen/Shanghai
Highlight:

Drone Signal Booster 100w

,

Drone Signal Amplifier 40w

,

Jamming Function Drone Signal Booster

Product overview

Drone Signal Booster 2.4GHz 10w 20w 40w 100w Amplifier With Jamming Function 0

Drone Signal Booster 2.4GHz 10w 20w 40w 100w Amplifier With Jamming Function 1

 1.Descriptions

Drone Signal Mitigation Parts 2.4GHz 10w 20w 40w 100w Amplifier with Jamming Function

Drone Signal Mitigation Parts include various amplifiers designed for counter-drone systems, specifically tailored to disrupt or jam drone communications and enhance signal strength in specific frequency bands, primarily 2.4GHz. These amplifiers come in different power outputs, such as 10W, 20W, 40W, and 100W, and incorporate jamming functions to effectively neutralize unauthorized drone activity.

2.Product Specifications



No. Items Specifications
1 Frequency range 2400-2500MHz
2 Operating Voltage 20-24V(customized 28V)
3 Gain(S21) 37db(customizable 25-37db)
4 Input return loss(S11) -15db
5 Flatness 3.7A@28V
6 Output power 45%@46dBm
7 Current 4.3A
8 Efficiency -30℃~85℃
9 LED state -40℃~150℃
10 Operating temperature <95%RH
11 Flatness ±0.5dB

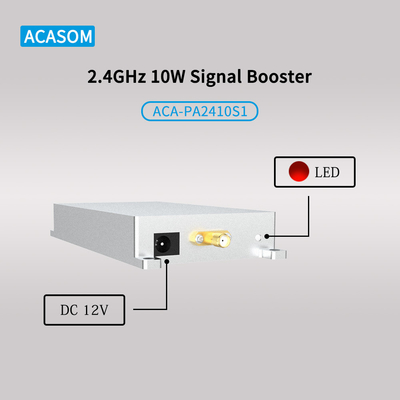

12 Power Socket 28V DC or 15cm red/black wire
13 Shell Material Aluminum

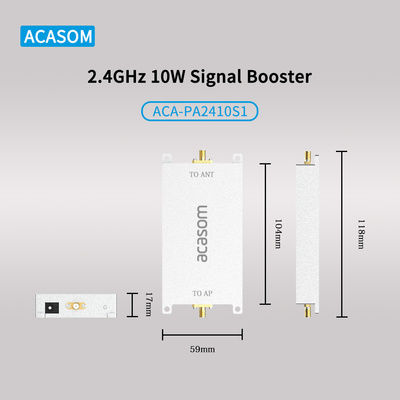

14 Shell Size 96*53*17mm
15 RF connector input: SMA-Female output :SMA-Female
16 Net Weight 0.15Kg



3.Product Advantages

  • Versatile Power Options The availability of 10W, 20W, 40W, and 100W amplifiers allows users to choose the most suitable power level for their specific application. Higher wattage options provide extended range and effectiveness in larger areas, while lower wattage may be sufficient for smaller, localized deployments.
  • Effective Jamming Capabilities Each amplifier includes built-in jamming functionality, which allows it to emit signals that interfere with the communication between the drone and its operator. This can effectively neutralize unauthorized drones, ensuring they cannot receive control signals or send telemetry data back.
  • Enhanced Signal Strength The amplifiers boost the signal strength of the jamming signal, making it more effective against various drone communication protocols. This ensures a more reliable jamming effect, even in environments with competing signals or potential interference.
  • Customizable Deployment These amplifiers can be used in various setups, from mobile anti-drone units to fixed installations at sensitive locations such as military bases, airports, and large public events. Their scalability allows for the integration of multiple amplifiers to cover extensive areas or specific zones of concern.
  • User-Friendly Operation Designed for ease of use, these amplifiers typically come with straightforward controls and interfaces, allowing operators to adjust settings quickly based on operational needs. This can include power adjustments, frequency tuning, and monitoring signal performance.

4.Product details

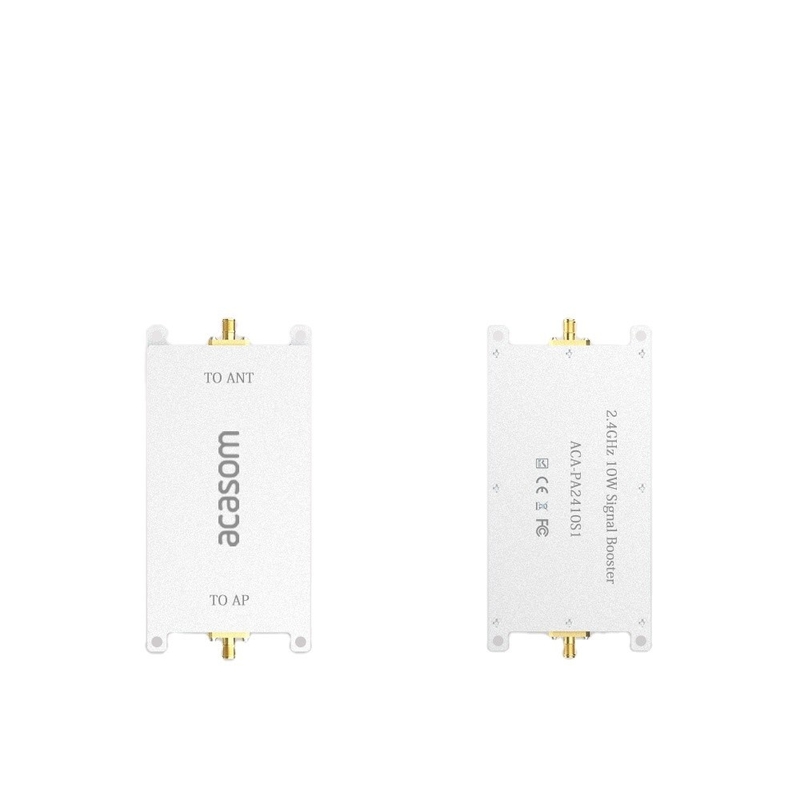

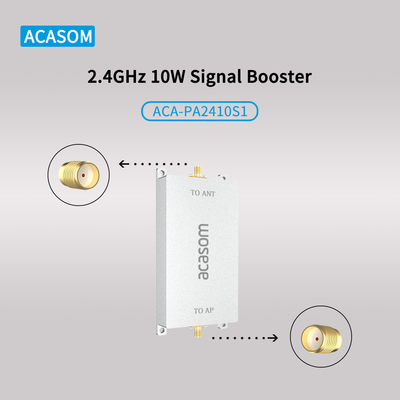

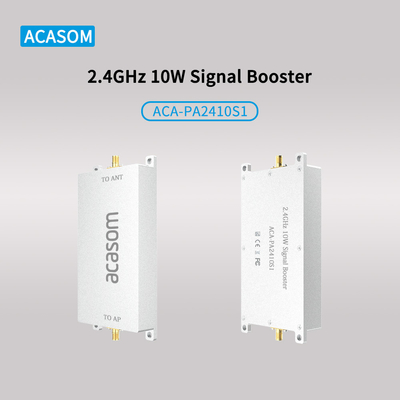

Drone Signal Booster 2.4GHz 10w 20w 40w 100w Amplifier With Jamming Function 2
Unidirectional amplifier (10w 20w 40w 100w)
ACASOM 2.4 GHz Signal blocking Source FOR WiFi/ DRONE
High Power VCO For Blocking Drone Flying
Frequency:2400-2500MHz
RFOUT POWER=46dBm(40W)
Long distance Wireless signal mitigation for drones
