Product Details:
|
Type: | FPV Extender | Chipset: | Self Designed PCBA |
---|---|---|---|
Supplier Type: | Wholesale And Engineering | Frequency Bands: | 5.2GHz |
Application: | Home; Hospital | Frequency Range: | 5.2GHz |
Voltage: | 10W 20W 25W | Receiving Gain: | 16dB±1 |
Transmission Gain: | 18dB±1 | Max Output Power(P1dB): | 40dBm(10W) |
Input Trigger Power: | Min:3dBm Max:20dBm | EVM: | 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
Current Supply: | 2A | TX/RX Switch Time Delay: | <1 Us |
LED Indicator: | Transmitter: Red; Receiver: Green | Port: | Shenzhen/Shanghai |

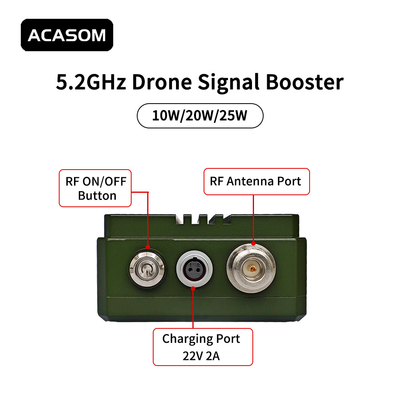

Charging Port: | 22V | Battery: | 8000mah With Type C |
Highlight: | 10W 5.8 GHz Signal Amplifier,Outdoor 5.8 GHz Signal Amplifier,10W 5.8 ghz signal booster |
Ultimate Guide To Drone Signal Boosters From 900MHz To 5.8GHz
Product overview
1.Descriptions

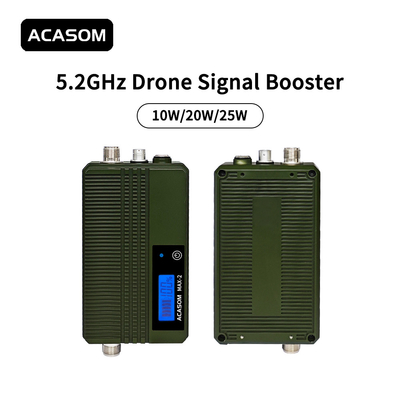

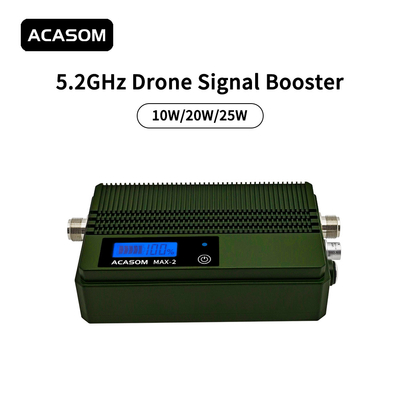

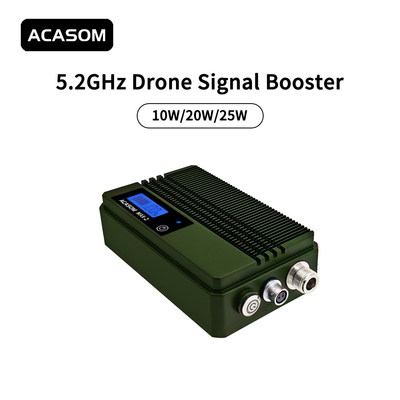

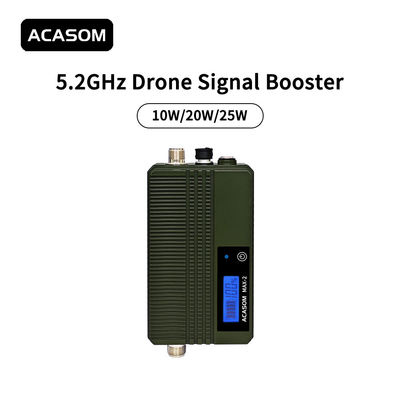

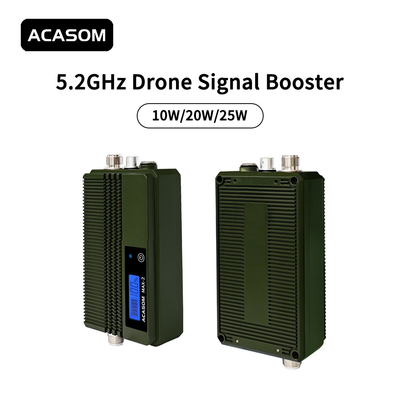

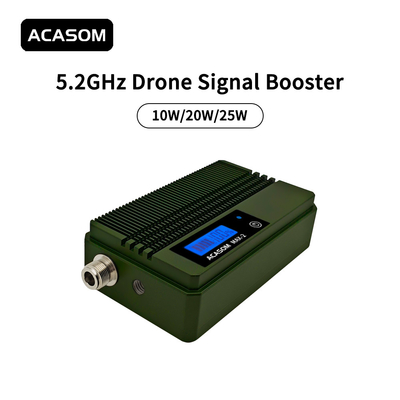

MAX-2 Outdoor 5.8GHz 10W Signal Amplifier | Boost Your Range with Tarot 5.8G Image Transmission
Signal stability and strength are critical in drone flight. This guide will take an in-depth look at 1200MHz to 5.8GHz drone signal boosters to help you choose the right device to improve flight performance and ensure the best signal connection in a variety of environments.
No. | Items | 5.8G |
1 | Frequency range | 5800MHz |
2 | Antenna gain | 15db±1 |
3 | Receiving gain | 16dB±1 |
4 | Transmission gain | 18dB±1 |
5 | Max Output Power(P1dB) | 40dBm(10w) |
6 | Input Trigger Power | Min:3dBm Max:23dBm |
7 | EVM | 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
8 | Noise Figure | <2.5dB |
9 | Current Supply | 2.2A@Pout40dBm 12V |
10 | TX/RX Switch Time Delay | <1 μs |
11 | LED Indicator | 4 Blue LED |
12 | Power Socket | 2.5*0.7mm |
13 | Shell Material | Aluminum |

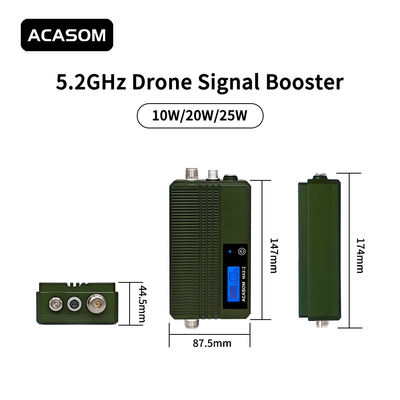

14 | Shell Size | 147*87.5*45.5(mm) |
15 | Battery | 8000mah with type c |
3.Product Advantages
4.Product details
