2.4G 5W Outdoor Super Drone Signal Booster 2.5dB Noise And 1 μS Switch Time Delay

Certification
China ACASOM CO., LIMITED certification
I'm Online Chat Now

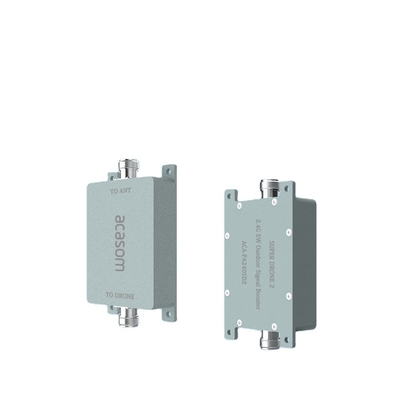

2.4G 5W Outdoor Super Drone Signal Booster 2.5dB Noise And 1 μS Switch Time Delay

2.4G 5W Outdoor Super Drone Signal Booster 2.5dB Noise And 1 μS Switch Time Delay
2.4G 5W Outdoor Super Drone Signal Booster 2.5dB Noise And 1 μS Switch Time Delay 2.4G 5W Outdoor Super Drone Signal Booster 2.5dB Noise And 1 μS Switch Time Delay 2.4G 5W Outdoor Super Drone Signal Booster 2.5dB Noise And 1 μS Switch Time Delay 2.4G 5W Outdoor Super Drone Signal Booster 2.5dB Noise And 1 μS Switch Time Delay

Large Image :  2.4G 5W Outdoor Super Drone Signal Booster 2.5dB Noise And 1 μS Switch Time Delay

Product Details:
Place of Origin: Shenzhen
Brand Name: ACASOM
Model Number: ACA-Sup2405S1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $99.00 - $129.00/sets
Packaging Details: As required
Delivery Time: 3-5 worker days
Payment Terms: T/T, Western Union
Supply Ability: 20000 Set/Sets per Month

2.4G 5W Outdoor Super Drone Signal Booster 2.5dB Noise And 1 μS Switch Time Delay

Description
Type: RF Module Chipset: GaN High Power Chip
Supplier Type: Self-brand Application: UAV Blocking System
Product Name: 2.4GHz Super Signal Amplifier Frequency: 2400MHz-2500MHz
ReceivingGain: 18dB±1 Transmission Gain:: 18dB±1
Max Output Power(P1dB): 37Bm(5W) Input Trigger Power: Min:5dBm Max:20dBm
EVM: 3%@37dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz Noise: <2.5dB
Current Supply: 1.2A@Pout 37dBm 12V TX/RX Switch Time Delay: <1 μs
Port: Shanghai Net Weight: Net Weight
Highlight:

5W Super Drone Signal Booster

,

Super Drone Signal Booster 2.5dB

,

5W fpv signal booster

Product overview

2.4G 5W Outdoor Super Drone Signal Booster 2.5dB Noise And 1 μS Switch Time Delay 0

Super Drone 2.4G 5W Outdoor Signal Booster 2.5dB Noise and 1 μs Switch Time Delay

This super drone 2.4GHz 5W outdoor signal booster is specially designed for remote control and long-distance wireless communication, featuring low noise and fast switching time. With a low noise figure of 2.5dB and a switching delay of 1 microsecond, this signal booster can significantly improve the drone control range and signal stability, ensuring efficient and reliable communication in complex outdoor environments. Its high power output and rugged design make it particularly suitable for supporting drones, wireless video transmission and other devices requiring signal enhancement in the 2.4GHz band in outdoor environments.

2.Product Specifications

No. Items Specifications
1 Frequency range 2400-2483.5MHz
2 Operating Voltage 12-24V
3 ReceivingGain 18dB±1
4 Transmission Gain 18dB±1
5 Max Output Power(P1dB) 37Bm(5W)
6 Input Trigger Power Min:3dBm Max:20dBm
7 EVM 3%@37dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
8 Noise Figure <2.0dB
9 Current Supply 640mA@Pout 29dBm 12V
10 TX/RX Switch Time Delay <1 μs
11 Flatness ±0.5dB
12 Power Socket Through-core capacitance or 15cm red/black wire
13 Shell Material Aluminum
14 Shell Size 90*68*25(mm)
15 Net Weight 0.30Kg

3.Product Advantages

  • 5W High Power Output This booster has an output power of 5W, which can significantly expand the signal coverage. It is especially suitable for the use of drones in vast outdoor scenes, ensuring long-distance control and stable data transmission.
  • Low noise figure (2.5dB) The low noise figure of 2.5dB ensures clarity and stability during signal transmission, reduces background noise and other signal interference, and ensures high-quality wireless communications, especially over long distances or with multiple interferences environment.
  • Fast switching time (1μs) The fast switching time of 1 microsecond greatly improves the response speed of the communication link, which is particularly important in application scenarios that require fast transmission and reception of signals, such as drone control, real-time video transmission, etc.
  • Rugged Outdoor Design This signal booster is designed for outdoor use, with weather resistance and anti-interference capabilities, able to maintain stable performance in harsh weather conditions, making it ideal for long-term use of drones or other outdoor devices.
  • Widely used in 2.4GHz equipment. This booster is suitable for a variety of 2.4GHz frequency band equipment, such as drone control systems, wireless video transmission, Wi-Fi signal enhancement, etc., providing excellent signal amplification effects, allowing equipment to operate over long distances and Maintain efficient communication performance in complex environments.

4.Product details

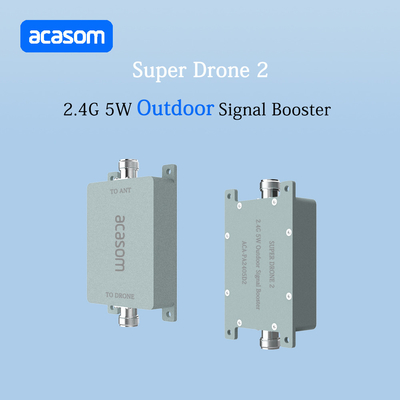

2.4G 5W Outdoor Super Drone Signal Booster 2.5dB Noise And 1 μS Switch Time Delay 1

ACASOM 2.4GHz 5W OUTDOOR SIGNAL BOOSTER FOR DRONE/WiFi/BLUETOOTH/ ZIGBEE
Frequency:2.4GHz-2.5GHz
RX Gain: RX=18
TX Gain: TX=18
