White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom Drone

Certification
China ACASOM CO., LIMITED certification
I'm Online Chat Now

White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom Drone

White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom  Drone
White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom  Drone White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom  Drone White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom  Drone White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom  Drone White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom  Drone White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom  Drone

Large Image :  White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom Drone

Product Details:
Place of Origin: Guangdong, China
Brand Name: ACASOM
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: $26.00 - $39.00/pieces
Delivery Time: 3-5 worker days
Payment Terms: T/T, Western Union
Supply Ability: 3000

White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom Drone

Description
Type: Gyroplane Condition: New
Year Built: 2023 Working Frequency: 2.4-2.5GHz
Rx Gain: 15dB Tx Gain: 18dB
Output Power: 4W Input Trigger Power: 3-20dBm
Power Supply: 5-16V Size: 64*35*13mm
Color: White LED Indicator: RED/GREEN
Customized: TX/RX Gain

Product overview

White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom  Drone 0

1.Descriptions
White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom Drone
The White 18dB 4W Wi-Fi Wireless Amplifier Router Booster for DJI Phantom Drone is a high-performance signal booster designed specifically to enhance the wireless communication range and signal strength of DJI Phantom drones or other Wi-Fi-enabled devices. This type of amplifier is ideal for extending the flight range of drones by improving signal quality between the drone and its controller, ensuring a more reliable connection in areas with potential interference or over longer distances.
2.Product Specifications

Number

Items

Specifications

1

Frequency Range

2.4-2.5GHz

2

Operating Voltage

6-16V

3

ReceivingGain

15dB±1

4

Transmission Gain:

18dB±1

5

Max Output Power(P1dB)

36dBm(4W)

6

Input Trigger Power

Min:3dBm Max:20dBm

7

EVM

3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz

8

Noise Figure

<2.5dB

9

Current Supply

580mA@Pout 28dBm 12V

10

TX/RX Switch Time Delay

 1us

11

LED Indicator

Transmitter: Green; Receiver: red

12

OperatingTemperature

-30℃~+70℃

13

StorageTemperature

-40℃~+150℃

14

Operating Humidity

Up to 95% rel. humidity

15

RF Connector

Input: SMA-female; Output: RP-SMA-female

16

Power Socket

2.1*0.7mm

17

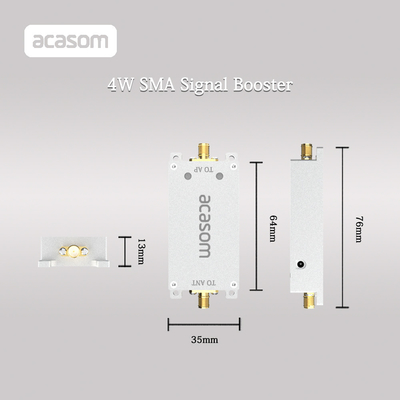

Shell Size

64*35*13mm

18

Shell Material

Aluminum

19

Net Weight

0.15Kg

3.Product Advantages

  • Extended Control Range With 18dB gain and 4W output power, this amplifier significantly boosts the control range of your DJI Phantom drone, allowing for longer flights without worrying about signal loss or communication interruptions.
  • Improved Signal Stability The booster enhances the stability of the Wi-Fi signal, reducing the chances of signal dropouts or interference from other devices operating on the same 2.4GHz frequency band.
  • Easy Integration The amplifier is designed for easy setup and integration with your drone’s existing Wi-Fi system or router. It can be connected quickly to the antenna system of the controller or router without needing complex modifications, making it convenient for users with limited technical experience.
  • Durable and Lightweight Design The device comes in a compact and lightweight white casing, making it easy to attach to your drone controller or carry along during drone operations.
  • Versatile Applications While designed primarily for use with DJI Phantom drones, this amplifier can also be used with Wi-Fi routers to improve the range and coverage of wireless networks in homes, offices, or large open areas..

4.Product details

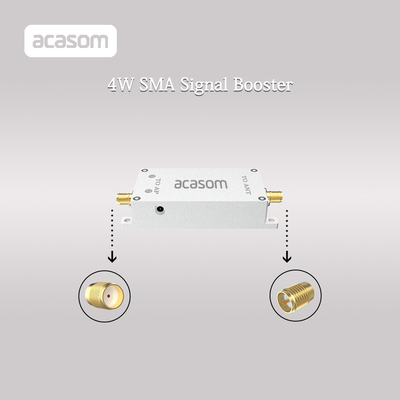

White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom  Drone 1

ACASOM 2.4GHz 4W Signal Booster/ Etender
Working Band: 2.4-2.5GHz
Output Power: 4W(36dBm)

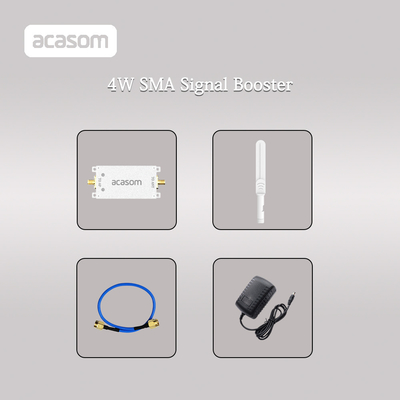

White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom  Drone 2

ACASOM 2.4GHz 4W Signal Booster/ Etender

Working Band: 2.4-2.5GHz

Output Power: 4W(36dBm)

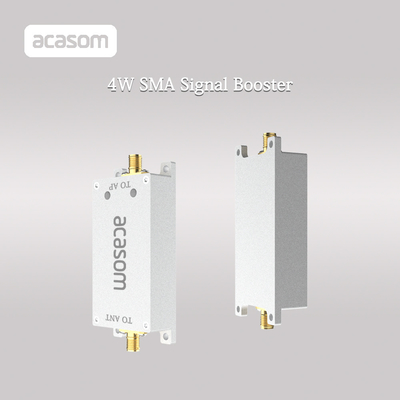

White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom  Drone 3

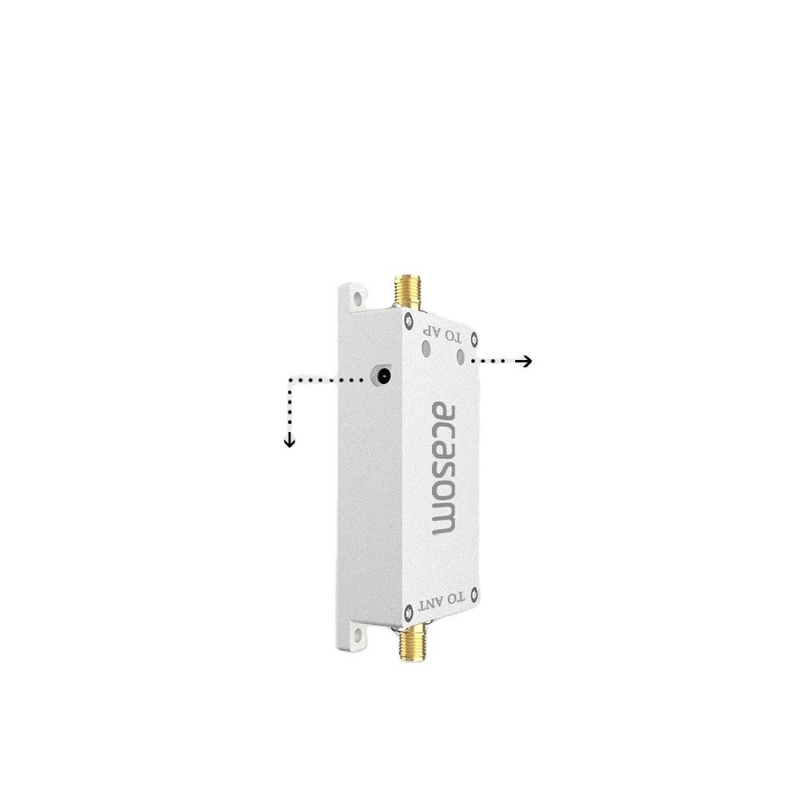

White 18dB 4W Wifi Wireless Amplifier Router Booster For DJI Phantom  Drone 4
