High Performance 20W RF Power Amplifier Module Wifi Drone Range Extender 43Bm

Certification
China ACASOM CO., LIMITED certification
I'm Online Chat Now

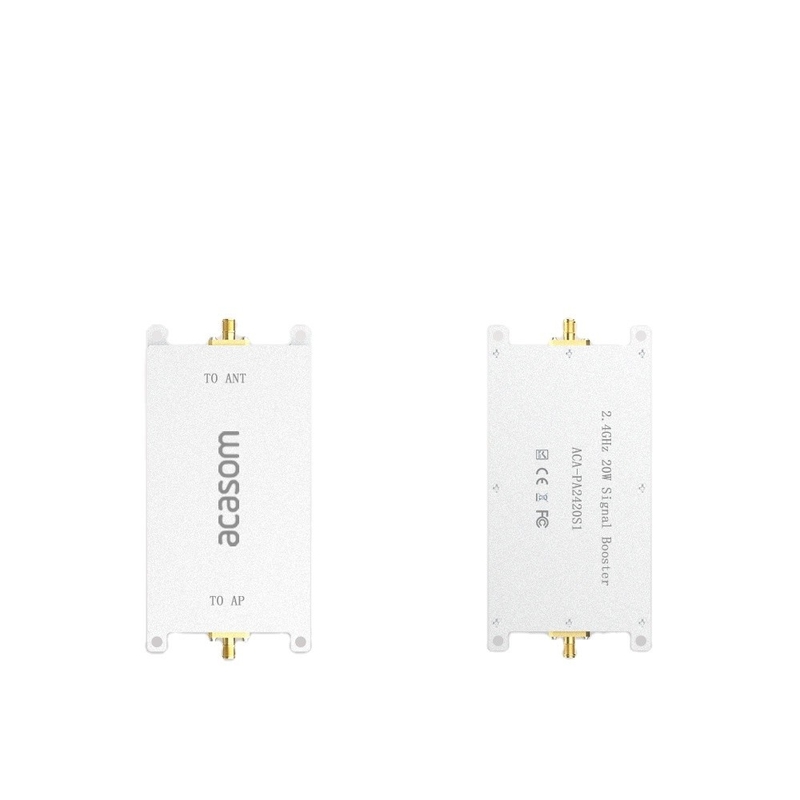

High Performance 20W RF Power Amplifier Module Wifi Drone Range Extender 43Bm

High Performance 20W RF Power Amplifier Module Wifi Drone Range Extender 43Bm
High Performance 20W RF Power Amplifier Module Wifi Drone Range Extender 43Bm

Large Image :  High Performance 20W RF Power Amplifier Module Wifi Drone Range Extender 43Bm

Product Details:
Place of Origin: Shenzhen
Brand Name: ACASOM
Model Number: ACA-DPA20S1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $199.00/sets 1-9 sets
Packaging Details: As required
Delivery Time: 3-5 worker days
Payment Terms: T/T, Western Union
Supply Ability: 20000 Set/Sets per Month

High Performance 20W RF Power Amplifier Module Wifi Drone Range Extender 43Bm

Description
Type: RF Module Chipset: GaN High Power Chip
Supplier Type: Self-brand Application: UAV Blocking System
Product Name: 2.4GHz Signal Amplifier Frequency: 2400MHz-2500MHz
Net Weight: 0.15Kg ReceivingGain: 17dB±1
Transmission Gain:: 17dB±1 Max Output Power(P1dB): 43Bm(20W)
Input Trigger Power: Min:5dBm Max:20dBm EVM: 3%@37dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
Noise: <2.5dB Current Supply: 1.2A@Pout 37dBm 12V
TX/RX Switch Time Delay: <1 μs Port: Shanghai
Highlight:

20W RF Power Amplifier Module

,

wifi drone range extender 20W

,

RF Power Amplifier Module 43Bm

Upgrade Your Drone'S Performance With 20W RF Module Amplifier And WiFi Range Extender

Product overview

High Performance 20W RF Power Amplifier Module Wifi Drone Range Extender 43Bm 0

1.Descriptions

Upgrade Your Drone'S Performance With 20W RF Module Amplifier And WiFi Range Extender

Boost your drone performance with our 20W RF module amplifier and WiFi signal booster. This high-power amplifier can significantly extend the drone’s WiFi communication range, ensuring a stable connection during long-distance flights. It is suitable for drone photography, inspections, remote control and other scenarios to enhance signal penetration and reduce the risk of disconnection. Whether it is complex terrain or a building-blocked environment, this amplifier will provide your drone with stronger communication capabilities and help you complete difficult tasks.

2.Product Specifications

No. Items Specifications
1 Frequency range 2400-2483.5MHz
2 Operating Voltage 8-18V
3 ReceivingGain 17dB±1
4 Transmission Gain 17dB±1
5 Max Output Power(P1dB) 43Bm(20W)
6 Input Trigger Power Min:5dBm Max:20dBm
7 EVM 3%@37dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
8 Noise Figure <2.5dB
9 Current Supply 1.2A@Pout 37dBm 12V
10 TX/RX Switch Time Delay <1 μs
11 Flatness ±0.5dB
12 Power Socket Through-core capacitance or 15cm red/black wire
13 Shell Material Aluminum
14 Shell Size 82*53*17mm
15 Net Weight 0.15Kg


3.Product Advantages

  •  Powerful power output (20W) This RF module amplifier provides a high output power of 20W, ensuring that the drone can still maintain a strong signal connection when flying over long distances. This enables users to operate over a wider area, reducing the risk of communication interruptions.
  • WiFi signal enhancement Integrated WiFi signal enhancement function, significantly extending the communication range between the drone and the controller. Whether in densely built urban areas or in open outdoor environments, the signal strength can be improved to ensure smooth video transmission and data communication.
  • Adaptable to long-distance flights. Designed specifically for long-distance flights, it enhances the communication capabilities of UAVs over long distances and reduces weak or lost signals. It is especially suitable for UAV missions that require long-term monitoring or data collection.
  • Strong stability and high anti-interference ability. This amplifier has excellent anti-interference ability and can maintain stable communication quality and reduce signal attenuation in complex electromagnetic environments. Even in places with high-density WiFi or other signal interference, the continuity of data transmission can still be ensured.
  • Lightweight and durable, suitable for drones. The amplifier module adopts a lightweight design and will not have too much impact on the flight load of the drone. At the same time, its sturdy shell and durability ensure stable operation in high-altitude flights and complex environments, making it suitable for a variety of drone models and application scenarios.

4.Product details

High Performance 20W RF Power Amplifier Module Wifi Drone Range Extender 43Bm 1

ACASOM 2.4G 20W Signal Booster/Extender is a device that helps to enhance the range and strength of wireless signals in both the 2.4GHz frequency bands.

It works by amplifying the signals that are transmitted and received by wireless devices such as routers, smartphones, laptops, and tablets, thereby improving the signal strength and extending the coverage area.
