Product Details:
|
Type: | RF Module | Chipset: | GaAs |
---|---|---|---|
Supplier Type: | PCBA Module | Application: | Drone Wifi Amplier Booster |
Working Frequency: | 5.725-5.85GHz | Rx Gain: | 17dB |
Tx Gain: | 18dB | Output Power: | 5W(37dBm) |
Input Trigger Power: | 3-20dBm | Power Supply: | 6-16V |
Size: | 70*50*8mm | Color: | Blue |
LED Indicator: | RED/GREEN | Customized: | TX/RX Gain |
1.Descriptions
Maximize Your Mavic 5W 5.8GHz Signal Booster Antenna For Extended Range
This 5W 5.8GHz signal booster antenna is designed to significantly increase the signal range of Mavic drones. Its high performance and optimized structure ensure stable and powerful signals during flight, making it suitable for long-distance aerial photography and use in complex environments.
2.Product Specifications
Number |
Items |
Specifications |
1 |
Frequency Range |
5.725-5.85GHz |
2 |
Operating Voltage |
6-16V |
3 |
ReceivingGain |
17dB±1 |
4 |
Transmission Gain: |
18dB±1 |
5 |
Max Output Power(P1dB) |
37dBm(5W) |
6 |
Input Trigger Power |
Min:3dBm Max:20dBm |
7 |
EVM |
3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz |
8 |
Noise Figure |
<2.5dB |
9 |
Current Supply |
580mA@Pout 28dBm 12V |
10 |
TX/RX Switch Time Delay |
1us |
11 |
LED Indicator |
Transmitter: Green; Receiver: red |
12 |
OperatingTemperature |
-30℃~+70℃ |
13 |
StorageTemperature |
-40℃~+150℃ |
14 |
Operating Humidity |
Up to 95% rel. humidity |
15 |
RF Connector |
- |
16 |
Power Socket |
5.5*2.1mm |
17 |

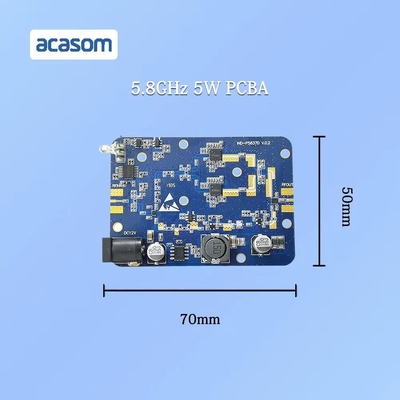

Shell Size |
70*50*8mm |
18 |
Shell Material |
- |
19 |
Net Weight |
0.08Kg |
3.Product Advantages
4.Product details

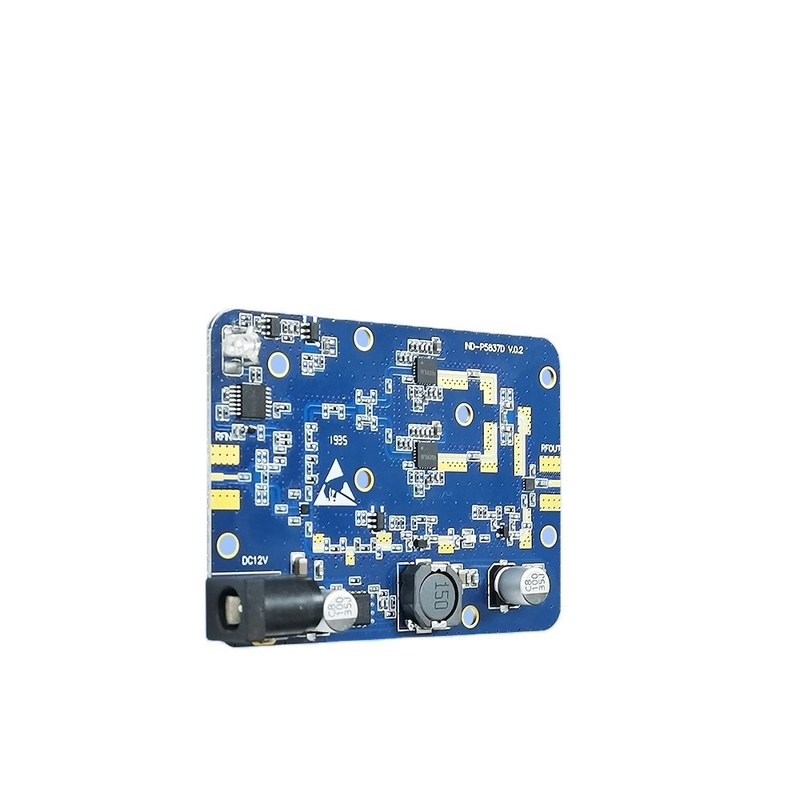

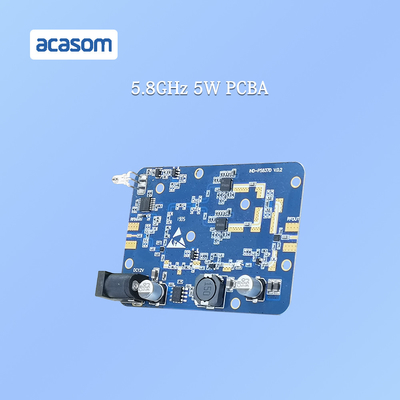

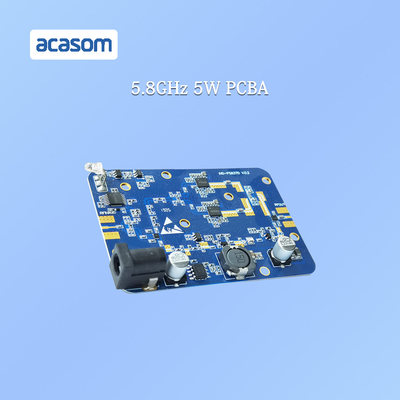

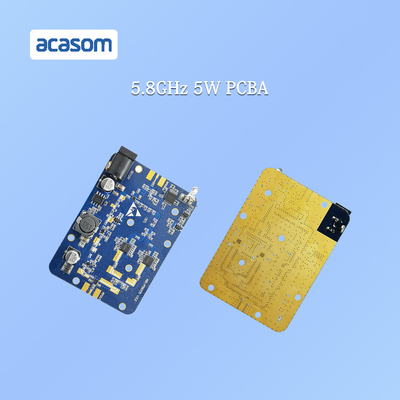

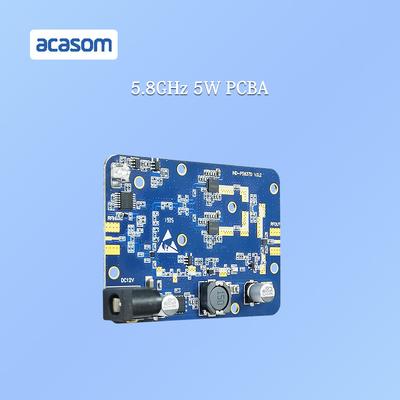

ACASOM 5.8GHz 5W Signal Booster/ Etender
Working Band: 5.725-5.85GHz
Output Power: 5W(37dBm)
5.8Ghz RF transceiver and receiver amplifier module can be used for industrial data transmission, wireless remote control, wireless mouse, wireless keyboard, wireless electronic label, remote control toy, 5.8GHz wireless amplifier, wireless microphone, wireless speaker,wireless led control, smart home,UAV etc.
