Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal

Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal
Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal

Large Image :  Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal

Product Details:
Place of Origin: Shenzhen
Brand Name: ACASOM
Model Number: ACA-SPA0950
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $199.00/sets
Packaging Details: As required
Delivery Time: 3-5 worker days
Payment Terms: T/T, Western Union
Supply Ability: 20000 Set/Sets per Month

Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal

Description
Features: Long Distance Signal Extender Application: Drone Signal Extender
Type: General Use Series: Super Drone Amplifier
Mounting Type: Self-installed/ Diy Description: Module Parts For Signal Booster
Manufacturing Date Code: 202301XX Frequency Range: 800-1000MHz
RF Connector: Both SMA-Female Gain(S21): 37dB(customizable 25-37dB)
Input Return Loss(S11): -15dB Output Power: 47dBm
Current: 4.3A @24V, 47dBm Efficiency: 45%@47dBm
Power Socket: 5.5*2.0mm DC( Default ) Or 15cm Red/black Wire Shell Size: 96*53*17mm
Net Weight: 0.15Kg Port: Shanghai
Highlight:

0.9GHz 50W RF Amplifier

,

Customizable 50W RF Amplifier

,

Customizable 50 watt rf amplifier

Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal



Product overview

Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal 0

Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal 1

1.Descriptions

Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal

This customizable 0.9GHz 50W RF amplifier, with a gain of 25-37dB, is designed to enhance wireless signal transmission. Its high power and flexible gain settings make it suitable for a variety of wireless communication applications, including industrial, commercial and scientific research. The amplifier is designed with a focus on performance and stability to ensure signal quality is maintained over long distances, making it an ideal choice for improving the efficiency of wireless communication systems.

2.Product Specifications

Number

Items

Specifications

1

Frequency Range

800-1000MHz

2

Operating Voltage

20-24V(customizable28-32V)

3

Gain(S21)

37dB(customizable 25-37dB)

4

Input Return Loss(S11)

-15dB

5

Flatness

±0.5dB

6

Output Power

47dBm

7

Current

4.3A @24V, 47dBm

8

Efficiency

45%@46dBm

9

LED State

Red

10

Operating Temperature

-30℃~85℃

11

Storage Temperature

-40℃~150℃

12

Operating Humidity

<95%RH

13

RF Connector

        Input:SMA-Female;

        Output:SMA-Female

14

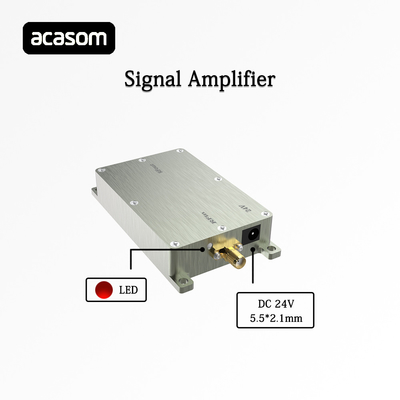

Power Socket

5.5*2.0mm DC( default ) or 15cm red/black wire

15

Shell Material

Aluminum

16

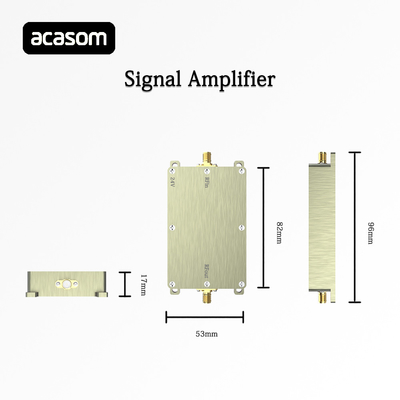

Shell Size

96*53*17mm

17

Net Weight

0.15Kg

3.Product Advantages

  • Customizable gain (25-37dB) With flexible gain options, users can adjust the gain settings according to specific needs to adapt to different application scenarios and signal requirements.
  • High power output (50W) Provides a powerful 50W output power, effectively improving signal strength, ensuring signal clarity and stability during long-distance transmission.
  • Applicable to 0.9GHz band Designed specifically for the 0.9GHz band to ensure the best signal amplification effect within this band to meet specific wireless communication needs.
  • Widely used in a variety of industries Applicable to a variety of application scenarios, such as wireless networks, wireless monitoring, remote communications, etc., it is an ideal solution for industrial, commercial and scientific research fields.
  • High performance and stability After optimized design, it has superior heat dissipation performance and anti-interference ability, ensuring stable operation in various environments and improving the overall reliability of the system.

4.Product details

Customizable 25-37dB 0.9GHz 50W RF Amplifier For Enhanced Wireless Signal 2

ACASOM 0.9GHz Unidirectional Amplifier FOR WiFi/ DRONE

Only the Tansmitting Channel (TX), NO RX

Frequency:0.8GHz-1.0GHz

RFOUT POWER=47dBm(50W)

ACASOM accept customizing the power you need!
