Product Details:
|
| Type: | RF Module | Chipset: | Self Designed PCBA |
|---|---|---|---|
| Supplier Type: | Wholesale And Engineering | Application: | Home; Hospital |
| Frequency Range: | 868MHz;915MHz;1200MHz | Port Connectors: | SMA-Female ;SMA-MALE |
| Band: | 1.2GHz | Bandpass Minimal Frequency: | 1080MHz |
| Bandpass Maxmal Frequency: | 1360MHz | Out Of Band Rejection1: | ≥30dB@868MHz |
| Out Of Band Rejection2: | ≥30dB@915MHz | Surface: | Black |
| Size: | 83*13*1.5mm | Net Weight: | 0.1Kg |
| Highlight: | 1300MHz Notch Filter,Receiver notch filter,1300MHz acasom filter |
||
1.Descriptions
Upgrade Video Reception With 1200-1300MHz Notch Filter For 1080MHz Bandpass Receivers
This 1200-1300MHz notch filter is designed for 1080MHz bandpass receivers to improve video reception quality. It optimizes your video transmission experience by effectively filtering out unnecessary frequency interference, ensuring clear and stable signals.
2.Product Specifications
| No. | Items | 5.8G |
| 1 | Frequency range | 1.2GHz |
| 2 | Bandpass Min frequency | 1080MHz |
| 3 | Bandpass Max frequency | 1360MHz |
| 4 | VSWR | ≤1.5 |
| 5 | Maximum Power | 10 watt |
| 6 | Out of band Rejection | 3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz |
| 7 | Port Connectors | SMA-Female and SMAMALE |
| 8 | Surface Finish | Black |
| 9 | Size | 87*13*1.5mm |
| 10 | Weight | 0.1Kg |
3.Product Advantages
4.Product details

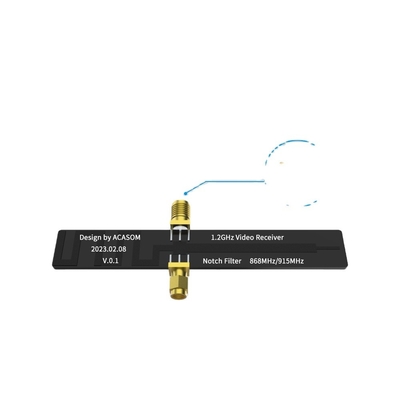

ACASOM INDOOR 1.2GHz Video
Receiver Notch Filter
868MHz 915MH
1.2GHz VRX Notch Filter improve video receiver block 868MHz
915MHZ signal combination TBS Crossfire
1,Ultralow Inter Loss ≤1.0dB
2,Ultra High Out of Band Rejection
≥30dB@868MHz ≥30dB@915MHz
1,There is no difference between the two RF ports of the
filter. Both side can be connected to the antenna or Drone.
2,The filter is connected between the antenna and Drone,
or between the antenna and extender.
