Product Details:
|
Features: | High Accuracy | Application: | Signal Power Enhancing |
---|---|---|---|
Type: | Power Supply | Series: | Super Drone |
Mounting Type: | Self Installing | Description: | DC 12V Bias Tee For Amplifier |
Manufacturing Date Code: | 202301XX | Frequency Range: | 863-870MHz |
Operating Voltage: | 6-18V | ReceivingGain: | 17dB±1 |
Transmission Gain: | 6dB±1 | Input Trigger Power: | Min:-10dBm Max:20dBm |
EVM: | 3%@27dBm | TX/RX Switch Time Delay: | <1 Us |
Power Socket: | 2.5*0.7mm DC | Port: | Shenzhen/Shanghai |
Highlight: | Drone Amplifierfor Helium Network,12dB Drone Amplifier,868MHz drone signal amplifier |
868MHz 12dB Ultra Low Noise Super Amplifier Optimized For Helium Network Performance
1.Descriptions
868MHz 12dB Ultra Low Noise Super Amplifier Optimized for Helium Network Performance
The 868MHz 12dB Ultra Low Noise Super Amplifier is designed to enhance the performance of Helium (HNT) networks by improving signal strength and reducing noise. Its low-noise amplification is crucial for maximizing data transmission and expanding network coverage.
2.Product Specifications

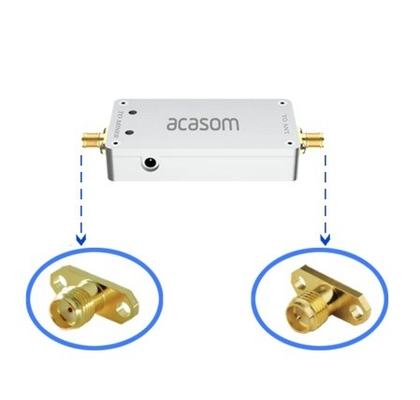

4.Product details
PAY ATTENTION:
How to choose the gain of Rx and Tx ?
1,If there is a long RF CABLE (over 5 meters) or power divider between the extender and the hotspot, it is recommended to use the
combination of RX = 17, TX = 6;
2, If there is nothing else between the extender and the hotspot directly, it is recommended to use RX =10, TX =0.
868MHz RX 10dB TX 0dB AMP Helium Singal Extender| |
3,If you want to test the impact of different value RX/TX on the system, it is recommended to use the combination of RX = 17, TX =6,and 3dB/6dB attenuator to adjust.
