Product Details:
|
| Product Name: | Portable Drone FPV Jammer | Function: | Blocking FPV And Drone |
|---|---|---|---|
| Action Distancece: | 500-1500m (according To The Real Environment ) | Working Frequency: | 5725MHz-5850MHz |
| Output Power: | 50W | Weight: | 1.1Kg |
| Working Time: | 1.5 Hours | Battery Capacity Tester: | LCD Screen |
| RF Port: | N-Female | Batteries Included: | 29.2V /5000mAh |
| Charger Voltage: | 29.2V/2A | Active Cooling: | Yes |
| Waterproof: | IP68 | Operating Temperature: | -20'C To +60°C |
| Shell Size: | 177*85*43mm | Output Power1: | 10W 20W 30W 40W 50W 60W 70W（customized） |
| Woking Band1: | 200MHz -6100MHz（customized） | Supplier Type: | Manufacturer |
| Highlight: | 5850MHz Portable Drone Jammer,5.8G RF Drone Jammer,5725MHz Portable Drone Jammer |
||
VIC-2 50W GAN Portable FPV Drone Jammer
1.Descriptions
The VIC-2 is a single-band FPV and Drone jammer, and its shielding distance can reach a radius of 1-1.5Km. The product design uses GAN's chip solution and the integrated high-density lithium battery for power supply, and we also use fast charging technology, which can fully charge the battery within 1 hour. The product as a whole adopts IP68 waterproof structure design, all-aluminum body. VIC-2 products in different frequency bands can be used at the same time to achieve the purpose of weight sharing and safety sharing.You can customize the working frequency bands of VIC-2, such as 200-300M, 300-400M, 400-500M, 500-600M, 600-700M, 700-800M, 800-900M, 900-1000M, 1.2G, 1.5G, 2.4G, 5.2G, 5.8G, etc.And power 10W, 20W, 30W, 40W, 50W, 60W.
2.Product Specifications
| Working Frequency | 5725-5850MHz |
| Output Power | 50W |
| Action distance | 1000-1500 meter radius(according to the real environment ) |
| Mobility and weight | 1.1Kg |
| Function | Block FPV drone signal |
| Operating temperature | -20°C to +60°C |
| Working Time | 1.5 hours |
| Active cooling | Yes |
| Batteries included | 29.2V /5000mAh |
| Charger Capacity | 29.2V/2A |

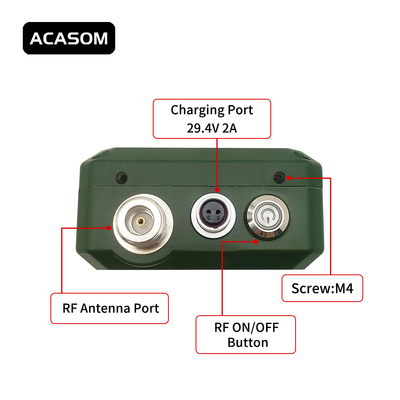

| RF Port | N-Female |
| Waterproof | IP68 |
| Battery Capacity Tester | LCD Screen |
| Power Socket | IP68 Aviation Plug |
| Color | Green |
| Shell Material | Aluminum |
| Shell Size | 177*85*43mm |
| LCD Screen Button | Yes |
| RF Button for Each Band | Yes |
3.Product Advantages

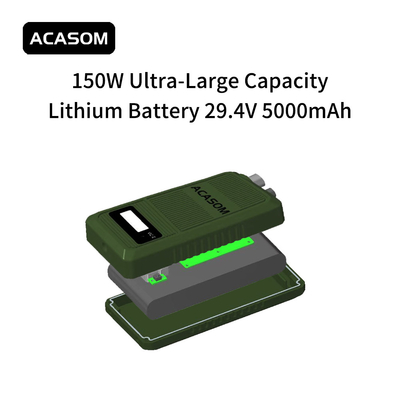

1,The VIC-2 contains a 50W GAN anti-drone module and a lithium battery (29.2V/5000mAh battery) that can work for more than 1 hour.
2,The whole body of the VIC-2 product uses an aviation aluminum mechanism to enhance heat dissipation and increase output power.
3,VIC-2 is IP68 waterproof design, which can work in rainy environments and wilderness for a long time.

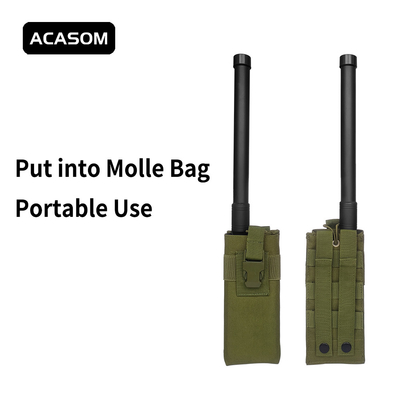

4,VIC-2 total net weight of the product is less than 1.2Kg, which is relatively light and compact, and easy to carry. It can be arm-mounted, waist-hung, chest-hung, etc.
5. VIC-2 can be used in combination with 3pcs, 4pcs, 5pcs and 6pcs, and the frequency bands can be freely combined, and the working power can also be freely combined to achieve the best jamming effect.

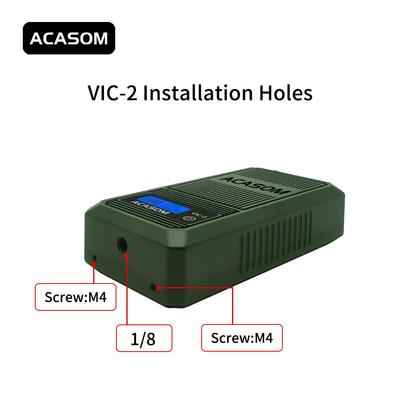

5.Product Size
5.What is Included in the Box
1*VIC-2
1*29.2V 2A power charging adapter
1*poly bag
1*3dB omni antenn
