Product Details:
Place of Origin: Shenzhen
Brand Name: ACASOM
Model Number: ACA-JAM5220S1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 239
Delivery Time: 3-5 worker days
Payment Terms: T/T, Western Union
Supply Ability: 3000

5150MHz 5350MHz High Blocking Effect 20w 43dbm Signal Jamming Module For UAV Disruption 5.2GHz

Description
Type: Jammer Module Chipset: GaN High Power Chip
Supplier Type: Manufacturer Application: Drone FPV Jammer System
Product Name: FPV Jammer Module Frequency: 5150MHz-5350MHz
Power: 43dbm Interface: SMA-F
Current: 2.0A @24V, 43dBm Power Socket: 15cm Red/black Wire
Net Size: 134*53*17mm Net Weight: 0.26Kg
Voltage: 28V Working Band: 200MHz -6100MHz(customized)
Output Power: 10W 20W 30W 40W 50W 60W 100W(customized)

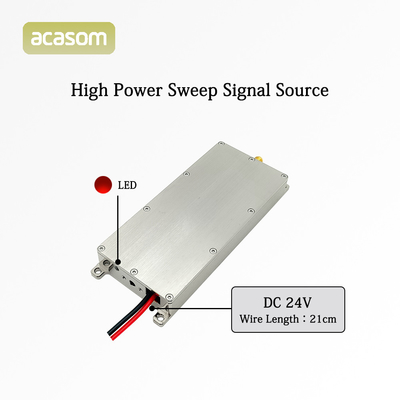

5150MHz 5350MHz  High Blocking Effect 20w 43dbm Signal Jamming Module For UAV Disruption 5.2GHz 0

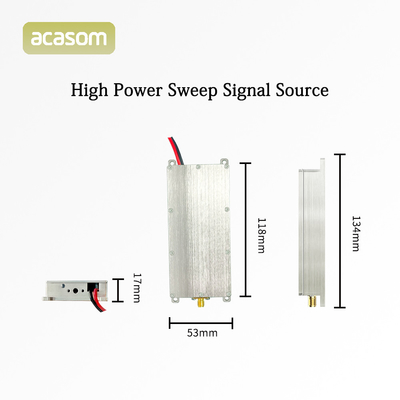

5150MHz 5350MHz  High Blocking Effect 20w 43dbm Signal Jamming Module For UAV Disruption 5.2GHz 1



5150MHz-5350MHz  5.2G  20W GAN drone FPV jammer



1.Descriptions

The 50W drone FPV jammer independently developed by ACASOM is mainly used to shield drone and FPV, and the shielding distance is 1-2km. This product use the latest generation of power devices-gallium nitride(GAN), which uses a ceramic package and a copper gold-plated substrate process. In addition, the shell of our product uses the nickel plating process of aviation aluminum box, which greatly provides the service life of the product. This series of products have 200M, 300, 400M, 500M, 600M, 700M, 800M, 900M, 1000M, 1.2G, 1.3G, 1.4G, 1.5G,1.7G, 2.2G, 2.4G, 3.5G, 4.8G, 5.0G, 5.2G, 5.7G, 5.8G, 6.1G and other frequency bands. The output power of this series of products is 10W, 20W, 30W, 40W, 50W, 60W, 100W and other power levels.

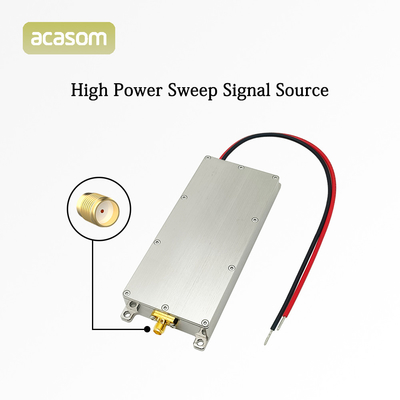

5150MHz 5350MHz  High Blocking Effect 20w 43dbm Signal Jamming Module For UAV Disruption 5.2GHz 2

2.Product Specifications



No. Items Specifications
1 Frequency range 5150MHz-5350MHz
2 Operating Voltage 24V
3 RF PORT SMA-F
4 Output Power 43dBm
5 Current 2.0A @24V, 43dBm
6 Efficiency 48%@43dBm
7 LED State Red
8 Operating Temperature -30℃~85℃
9 Storage Temperature -40℃~150℃
10 Operating Humidity <95%RH
11 Flatness ±0.5dB
12 Power Socket 15cm red/black wire
14 Shell Size 134*53*17mm
15 Net Weight 0.26Kg



3.GAN chip Advantages


1. High output power and High working efficiency, above 50%;
2. GAN's chips are packaged in ceramic, not plastic,enhance service life;
3.GAN's chips have a pure copper gold-plated substrate to enhance heat dissipation and service life;
4. When you're not installing the antenna, Jammer won't burn out.

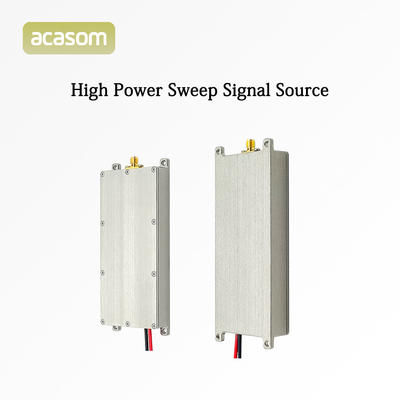

  • 5150MHz 5350MHz  High Blocking Effect 20w 43dbm Signal Jamming Module For UAV Disruption 5.2GHz 3
  •

 4.Product details

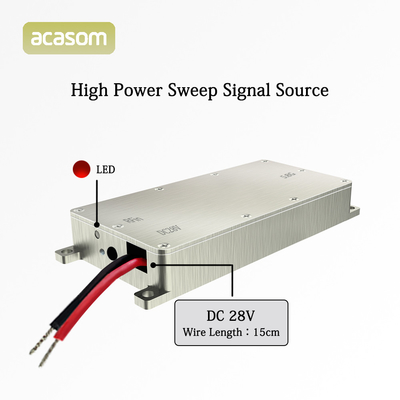

5150MHz 5350MHz  High Blocking Effect 20w 43dbm Signal Jamming Module For UAV Disruption 5.2GHz 4
