830MHz-960MHz High Efficiency Drone Jammer Module Customized Power

Certification
China ACASOM CO., LIMITED certification
I'm Online Chat Now

830MHz-960MHz High Efficiency Drone Jammer Module Customized Power

830MHz-960MHz High Efficiency Drone Jammer Module  Customized Power
830MHz-960MHz High Efficiency Drone Jammer Module  Customized Power 830MHz-960MHz High Efficiency Drone Jammer Module  Customized Power 830MHz-960MHz High Efficiency Drone Jammer Module  Customized Power 830MHz-960MHz High Efficiency Drone Jammer Module  Customized Power

Large Image :  830MHz-960MHz High Efficiency Drone Jammer Module Customized Power

Product Details:
Place of Origin: Shenzhen
Brand Name: ACASOM
Model Number: ACA-ISO-JAM0950S1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 215
Delivery Time: 3-5 worker days
Payment Terms: T/T, Western Union
Supply Ability: 3000

830MHz-960MHz High Efficiency Drone Jammer Module Customized Power

Description
Type: Jammer Module Chipset: GaN High Power Chip
Supplier Type: Manufacturer Application: Drone FPV Jammer System
Product Name: FPV Jammer Module Frequency: 830MHz-960MHz
Power: 47dbm Interface: SMA-F
Current: 3.2A @28V, 47dBm Power Socket: 15cm Red/black Wire
Net Size: 131*53*17mm Net Weight: 0.22Kg
Voltage: 28V Working Frequency: 200M -6100MHz(customized)
Output Power: 10W 20W 30W 40W 50W 60W 100W(customized)
Highlight:

Jammer Module Customized Power

,

960MHz Jammer Module

,

Customized Power jamming module

830MHz-960MHz High Efficiency Drone Jammer Module  Customized Power 0

830MHz-960MHz High Efficiency Drone Jammer Module  Customized Power 1

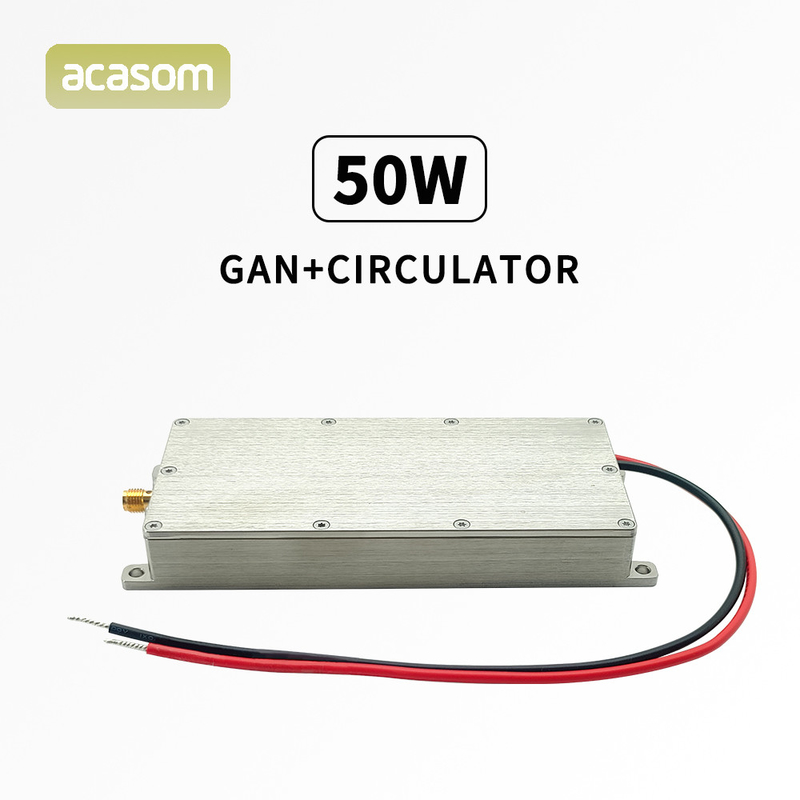

830MHz-960MHz  0.9GHz  50W GAN drone FPV jammer



1.Descriptions

The 50W drone FPV jammer independently developed by ACASOM is mainly used to shield drone and FPV, and the shielding distance is 1-2km. This product use the latest generation of power devices-gallium nitride(GAN), which uses a ceramic package and a copper gold-plated substrate process. This product also uses circulators and isolators, which greatly provides product stability. In addition, the shell of our product uses the nickel plating process of aviation aluminum box, which greatly provides the service life of the product. This series of products have 200M, 300, 400M, 500M, 600M, 700M, 800M, 900M, 1000M, 1.2G, 1.3G, 1.4G, 1.5G,1.7G, 2.2G, 2.4G, 3.5G, 4.8G, 5.0G, 5.2G, 5.7G, 5.8G, 6.1G and other frequency bands. The output power of this series of products is 10W, 20W, 30W, 40W, 50W, 60W, 100W and other power levels.

830MHz-960MHz High Efficiency Drone Jammer Module  Customized Power 2

2.Product Specifications



No. Items Specifications
1 Frequency range 830MHz-960MHz
2 Operating Voltage 28V
3 RF PORT SMA-F
4 Output Power 47dBm
5 Current 3.2A @28V, 47dBm
6 Efficiency 55%@47dBm

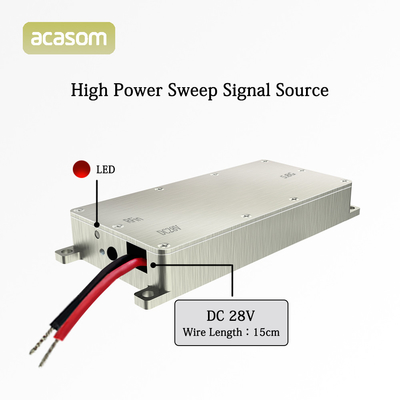

7 LED State Red
8 Operating Temperature -30℃~85℃
9 Storage Temperature -40℃~150℃
10 Operating Humidity <95%RH
11 Flatness ±0.5dB
12 Power Socket 15cm red/black wire
14 Shell Size 131*53*17mm
15 Net Weight 0.22Kg



3.Product Advantages

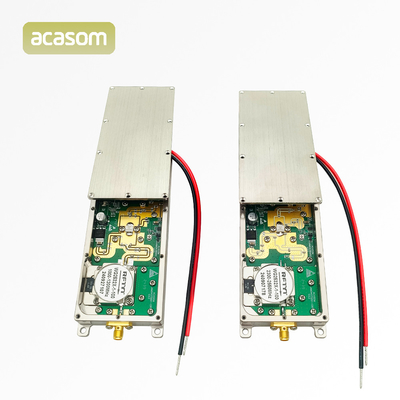

1. The GAN chip (not plastic packaging, black chip) is packaged with military ceramics, and the chip substrate uses copper gold plating process to improve heat dissipation and product life



2. The PCB uses thick gold plating ( thickness above 0.3um) process to improve the high-power and high-frequency RF performance



3. The shell adopts aviation aluminum and military nickel plating technology to provide the conduction effect and stability of the product

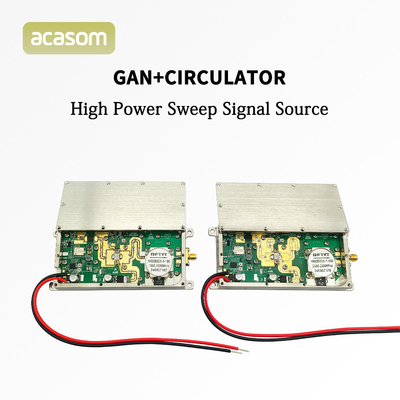

4. Using an ultra-low loss circulator, the GAN chip will not burn out when the antenna is not installed



5. Each product will undergo strict high and low temperature tests and aging tests to improve the installation efficiency of system products

830MHz-960MHz High Efficiency Drone Jammer Module  Customized Power 3

4.GAN Chip Advantages



1. High output power and High working efficiency, above 50%;


2. GAN's chips are packaged in ceramic, not plastic,enhance service life;


3.GAN's chips have a pure copper gold-plated substrate to enhance heat dissipation and service life;


4. When you're not installing the antenna, Jammer won't burn out.



830MHz-960MHz High Efficiency Drone Jammer Module  Customized Power 4

 5.Product Size

830MHz-960MHz High Efficiency Drone Jammer Module  Customized Power 5
