5150-5350MHz Anti Drone System Module For UAV Disruption 5.2GHz

5150-5350MHz Anti Drone System Module For UAV Disruption 5.2GHz
5150-5350MHz Anti Drone System Module For UAV Disruption 5.2GHz 5150-5350MHz Anti Drone System Module For UAV Disruption 5.2GHz 5150-5350MHz Anti Drone System Module For UAV Disruption 5.2GHz 5150-5350MHz Anti Drone System Module For UAV Disruption 5.2GHz

Large Image :  5150-5350MHz Anti Drone System Module For UAV Disruption 5.2GHz

Product Details:
Place of Origin: Shenzhen
Brand Name: ACASOM
Model Number: ACA-JAM5250S1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 199
Delivery Time: 3-5 worker days
Payment Terms: T/T, Western Union
Supply Ability: 3000

5150-5350MHz Anti Drone System Module For UAV Disruption 5.2GHz

Description
Type: Jammer Module Chipset: GaN High Power Chip
Supplier Type: Manufacturer Application: Drone FPV Jammer System
Product Name: FPV Jammer Module Frequency: 5150MHz-5350MHz
Power: 47dbm Interface: SMA-F
Current: 3.2A @28V, 47dBm Power Socket: 15cm Red/black Wire
Net Size: 134*53*17mm Net Weight: 0.26Kg
Voltage: 28V Working Band: 200MHz -6100MHz(customized)
Output Power: 10W 20W 30W 40W 50W 60W 100W(customized)
Highlight:

5350MHz Anti Drone System Module

,

5.2GHz Anti Drone System Module

,

UAV Disruption jamming module

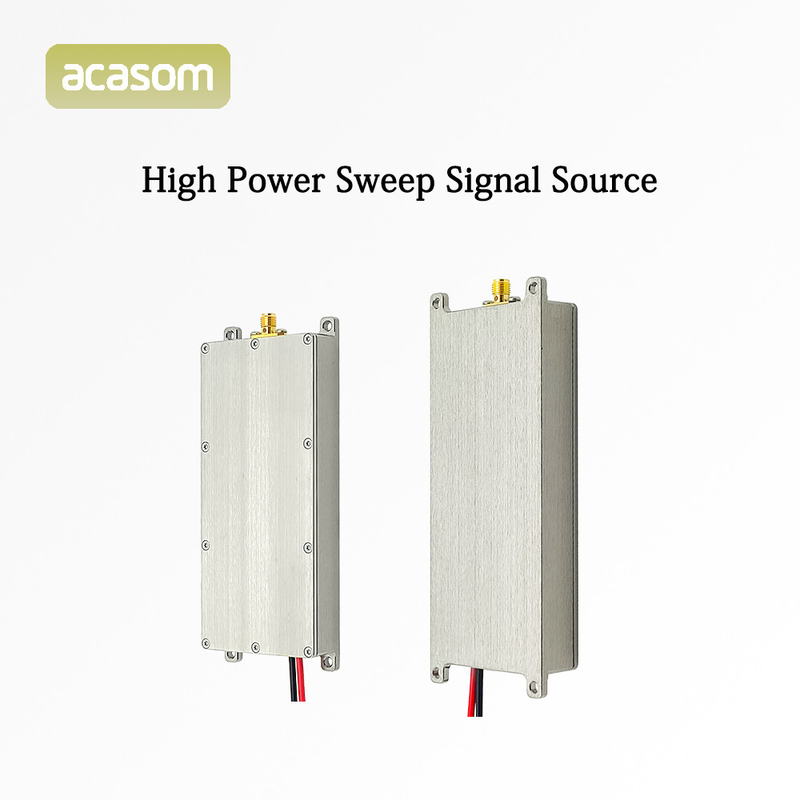

5150-5350MHz Anti Drone System Module For UAV Disruption 5.2GHz 0

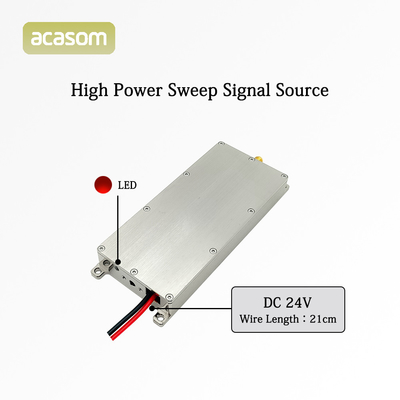

5150-5350MHz Anti Drone System Module For UAV Disruption 5.2GHz 1



5150MHz-5350MHz  5.2G  50W GAN drone FPV jammer



1.Descriptions

The 50W drone FPV jammer independently developed by ACASOM is mainly used to shield drone and FPV, and the shielding distance is 1-2km. This product use the latest generation of power devices-gallium nitride(GAN), which uses a ceramic package and a copper gold-plated substrate process. In addition, the shell of our product uses the nickel plating process of aviation aluminum box, which greatly provides the service life of the product. This series of products have 200M, 300, 400M, 500M, 600M, 700M, 800M, 900M, 1000M, 1.2G, 1.3G, 1.4G, 1.5G,1.7G, 2.2G, 2.4G, 3.5G, 4.8G, 5.0G, 5.2G, 5.7G, 5.8G, 6.1G and other frequency bands. The output power of this series of products is 10W, 20W, 30W, 40W, 50W, 60W, 100W and other power levels.

5150-5350MHz Anti Drone System Module For UAV Disruption 5.2GHz 2

2.Product Specifications



No. Items Specifications
1 Frequency range 5150MHz-5350MHz
2 Operating Voltage 28V
3 RF PORT SMA-F
4 Output Power 47dBm
5 Current 3.2A @28V, 47dBm
6 Efficiency 55%@47dBm
7 LED State Red
8 Operating Temperature -30℃~85℃
9 Storage Temperature -40℃~150℃
10 Operating Humidity <95%RH
11 Flatness ±0.5dB
12 Power Socket 15cm red/black wire

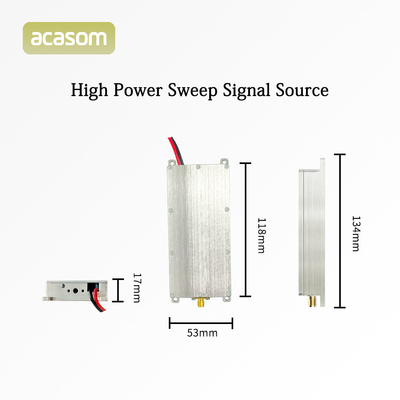

14 Shell Size 134*53*17mm
15 Net Weight 0.26Kg



3.GAN chip Advantages


1. High output power and High working efficiency, above 50%;
2. GAN's chips are packaged in ceramic, not plastic,enhance service life;
3.GAN's chips have a pure copper gold-plated substrate to enhance heat dissipation and service life;
4. When you're not installing the antenna, Jammer won't burn out.

  • 5150-5350MHz Anti Drone System Module For UAV Disruption 5.2GHz 3
  •

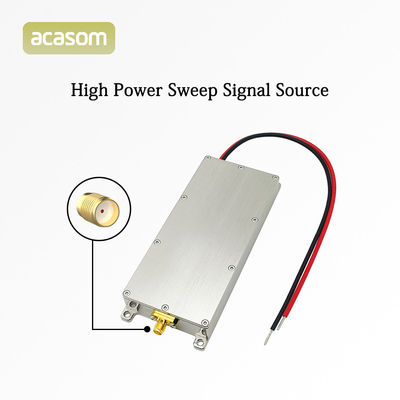

 4.Product details

5150-5350MHz Anti Drone System Module For UAV Disruption 5.2GHz 4
