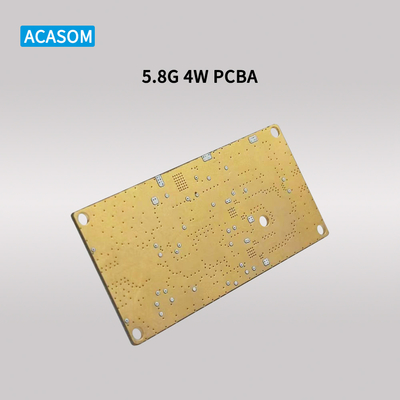

Powerful 5W 37dBm RF Signal Booster 12V PCBA For 5.8GHz & 2.4GHz Extending Wireless Range

3.Product Advantages

• Powerful gain (37dBm) Provides gain up to 37dBm, significantly enhancing signal strength and ensuring a clear and stable connection over long distance transmission.
• High output power (5W) With 5W output power, it effectively expands signal coverage and meets high-demand applications.
• Dual-band compatibility (5.8GHz & 2.4GHz) Supports 5.8GHz and 2.4GHz frequency bands, adapts to a variety of wireless communication needs, and provides flexible usage options.
• 12V power supply design Specially designed for 12V power input, easy to connect with a variety of devices, ensuring broad compatibility and easy integration.
• Easy to install and integrate User-friendly PCBA design makes the installation process simple and suitable for quick integration into various wireless devices and drones.

4.Product details

2.4GHZ
Frequency Range: 2.4~2.5GHz
Operating Voltage: 6~16V
Receiving Gain: 17dB±1
Transmission Gain: 17dB ±1
Input Trigger Power: Min:3dBm Max:20dBm
Max Output Power(P1dB): 36dBm(4W)
EVM: 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
DC Supply Current: 435mA@Pout 28dBm 9V



5.8GHz
Frequency Range: 5.725~5.85GHz
Operating Voltage: 6~16V
Receiving Gain: 17dB±1
Transmission Gain: 18dB ±1
Input Trigger Power: Min:3dBm Max:20dBm
Max Output Power(P1dB): 36dBm(4W)
EVM: 3%@28dBm 802.11 54Mbps OFDM 64QAM BW 20MHz
DC Supply Current: 435mA@Pout 28dBm 9V
